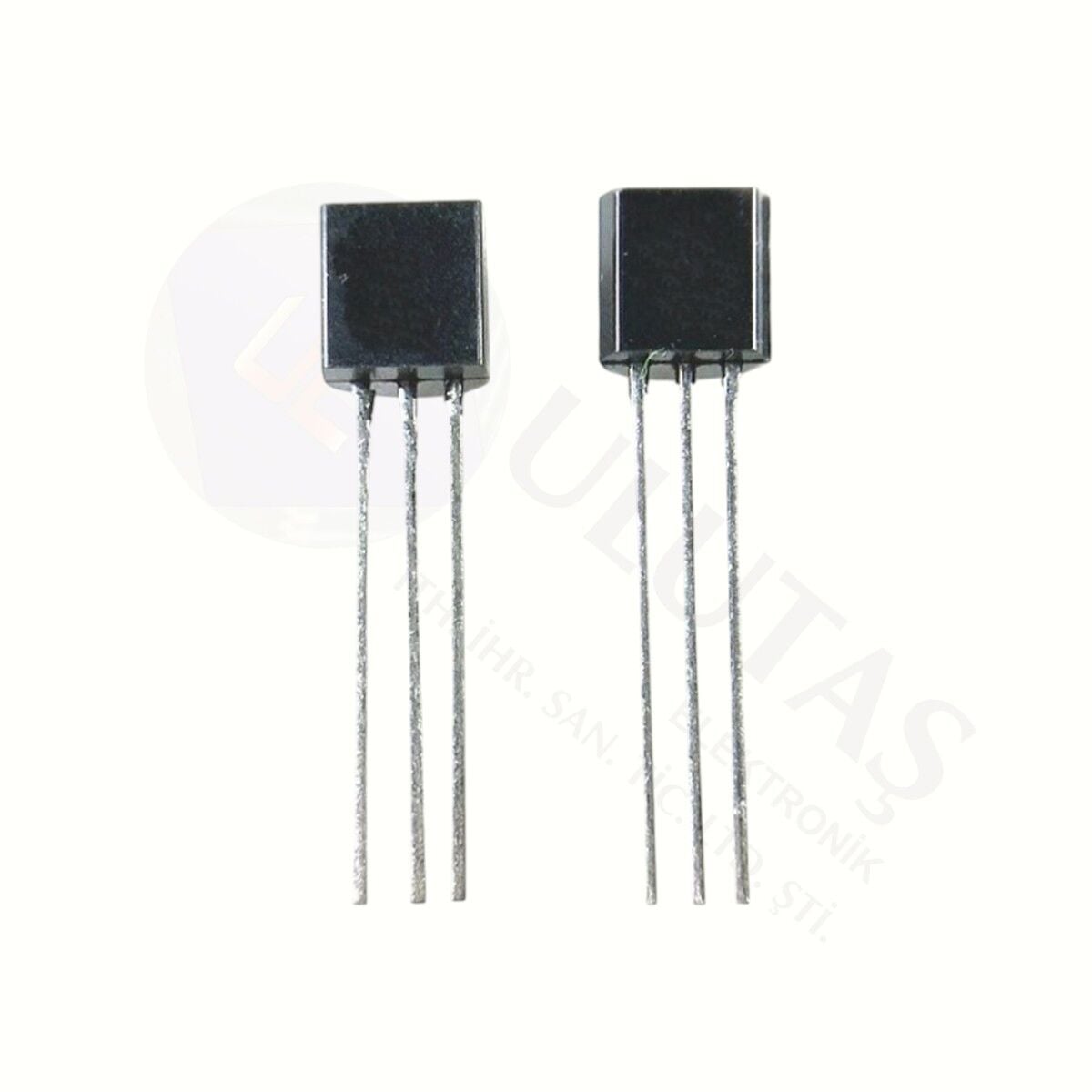

10 ADET - BC639-16 TO-92 1A 80V 0.8W NPN TRANSISTOR - ONLİNE ÖZEL FİYAT
BC639-16
Type Designator: BC639-16
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.8 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 7 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO-92
Ürün Bilgisi
BC639-16
Type Designator: BC639-16
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.8 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 7 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO-92
