RFD14N05LSM - (14N05L) TO-252 14A 50V N-CHANNEL POWER MOSFET TRANSISTOR
RFD14N05LSM MOSFET
Type Designator: RFD14N05LSM
Marking Code: 14N05L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 48 W
Maximum Drain-Source Voltage |Vds|: 50 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 14 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 40(max) nC
Rise Time (tr): 24 nS
Drain-Source Capacitance (Cd): 185 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm

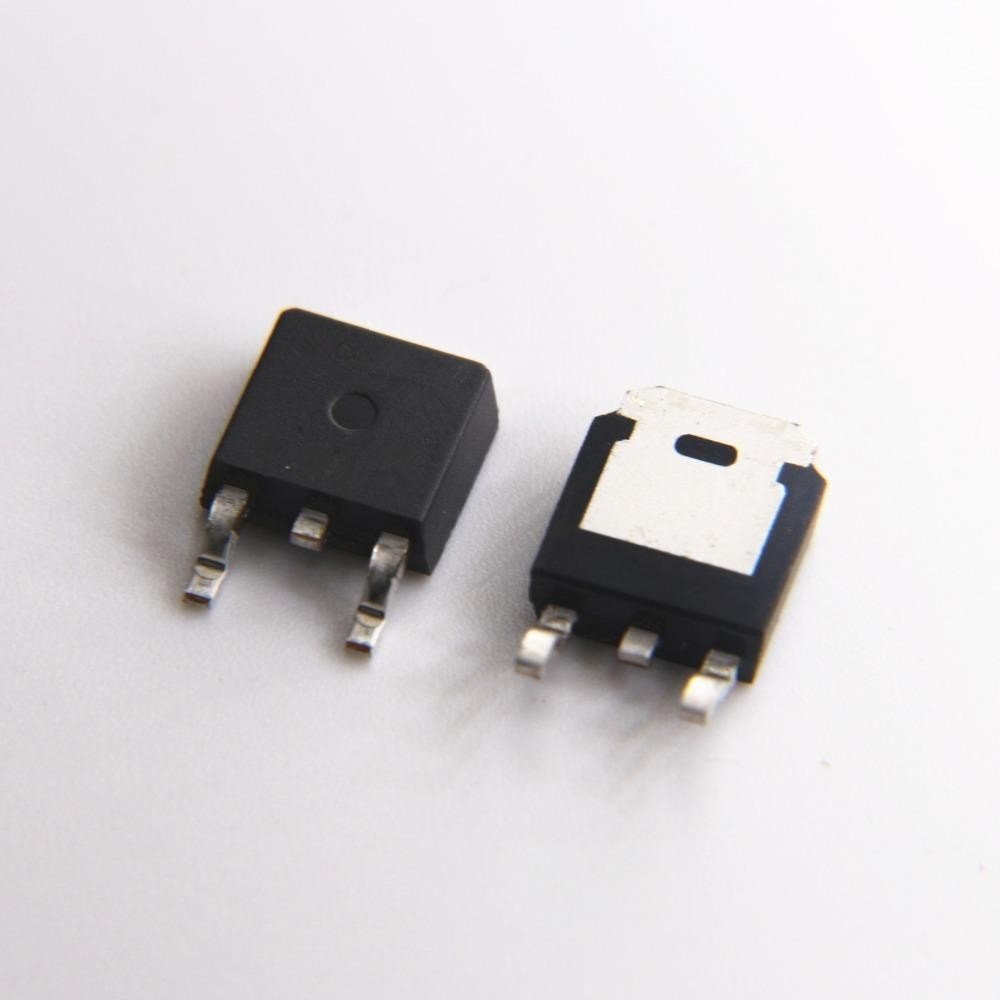

Package: TO252AA
Ürün Bilgisi
RFD14N05LSM MOSFET
Type Designator: RFD14N05LSM
Marking Code: 14N05L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 48 W
Maximum Drain-Source Voltage |Vds|: 50 V
Maximum Gate-Source Voltage |Vgs|: 10 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 14 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 40(max) nC
Rise Time (tr): 24 nS
Drain-Source Capacitance (Cd): 185 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: TO252AA
