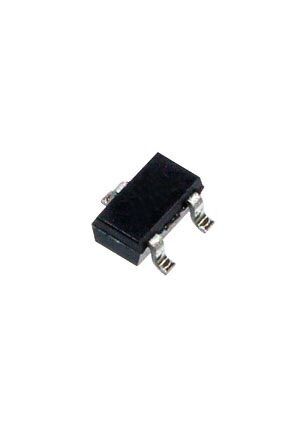

25 ADET - BC847BW,115 SOT-323 100mA 45V 0.25W NPN TRANSISTOR
BC847BW
Type Designator: BC847BW
SMD Transistor Code: 1F_1F-_1Fp_1Fs_1Ft_1FW_K1F_K1R
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 6 pF
Forward Current Transfer Ratio (hFE), MIN: 290
Package: SOT323
Ürün Bilgisi
BC847BW
Type Designator: BC847BW
SMD Transistor Code: 1F_1F-_1Fp_1Fs_1Ft_1FW_K1F_K1R
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 6 pF
Forward Current Transfer Ratio (hFE), MIN: 290
Package: SOT323
