2N1613

Type Designator: 2N1613

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.8 W

Maximum Collector-Base Voltage |Vcb|: 75 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 0.6 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 80 MHz

Collector Capacitance (Cc): 25 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

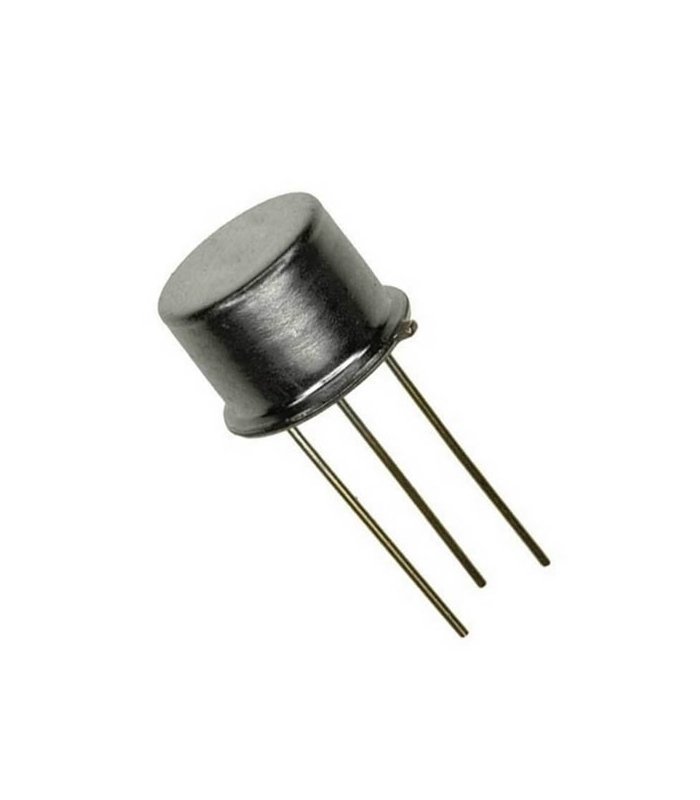

Package: TO5
