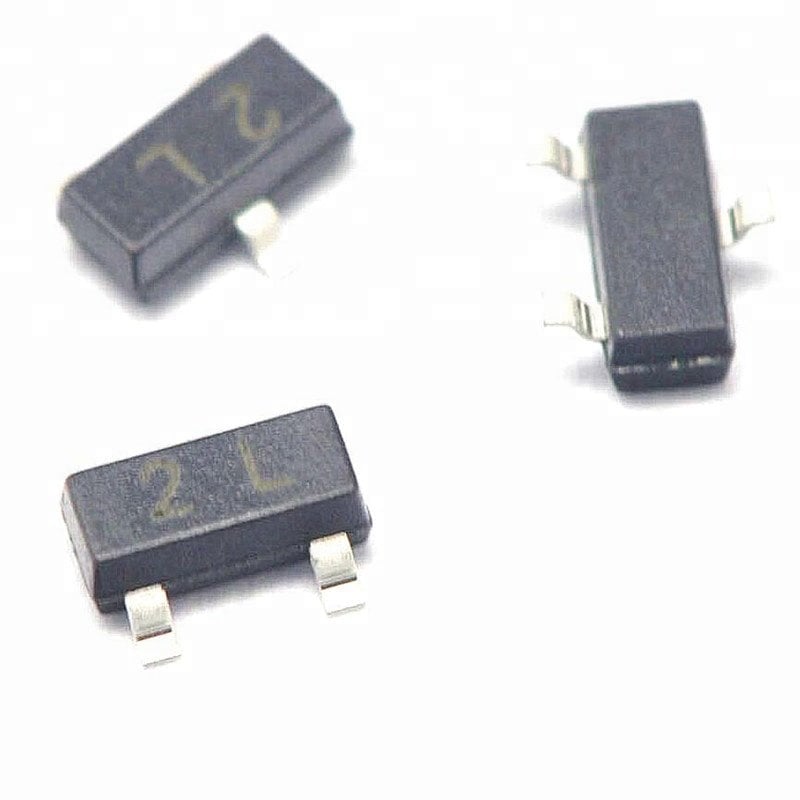

2N5401 - MMBT5401 - (2L) SOT-23 600MA 150V PNP TRANSISTOR
MMBT5401
Type Designator: MMBT5401
SMD Transistor Code: 2L_K4M
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.6 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 60
Package: SOT23
