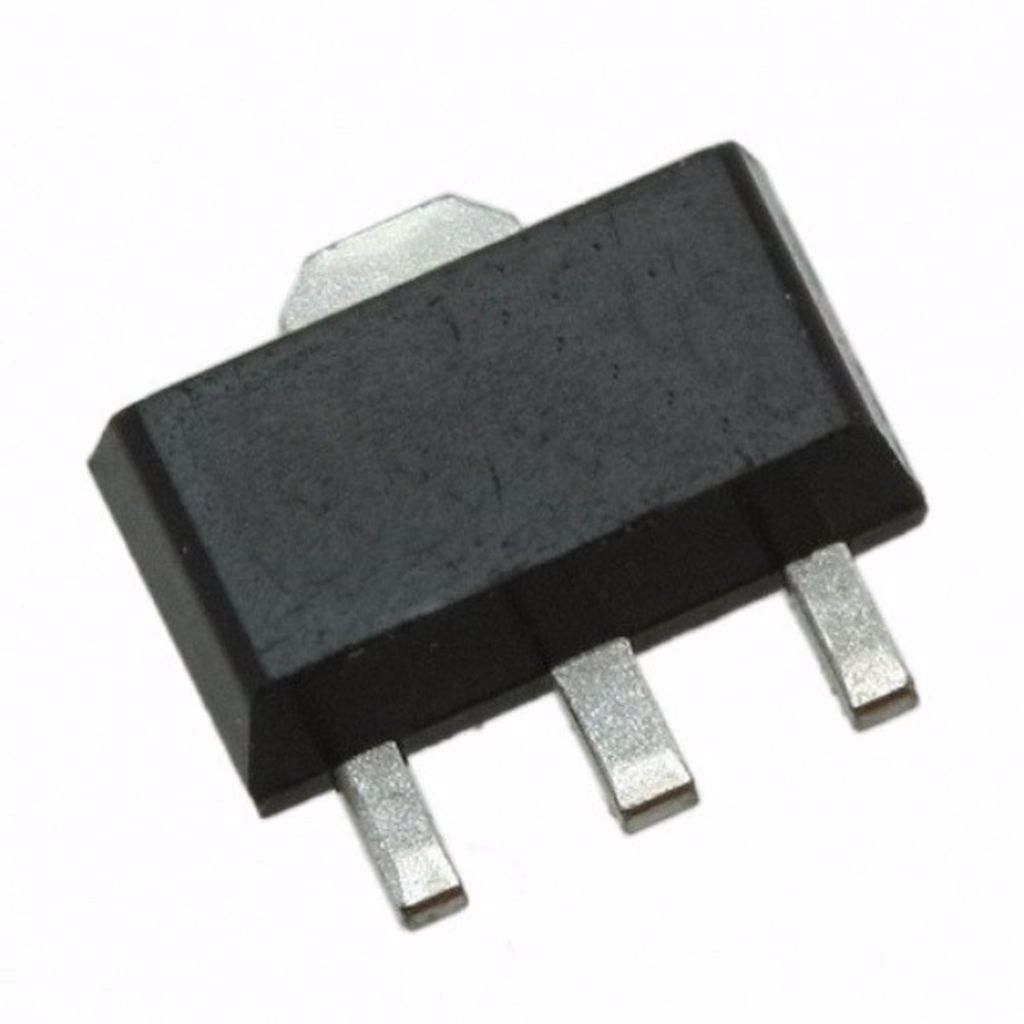

2SA1204 SOT-89 0.8A 35V PNP TRANSISTOR
2SA1204 Datasheet, Equivalent, Cross Reference Search
Type Designator: 2SA1204
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 35 V
Maximum Collector-Emitter Voltage |Vce|: 35 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 19 pF
Forward Current Transfer Ratio (hFE), MIN: 200
Package: SP0
Ürün Bilgisi
2SA1204 Datasheet, Equivalent, Cross Reference Search
Type Designator: 2SA1204
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 35 V
Maximum Collector-Emitter Voltage |Vce|: 35 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 19 pF
Forward Current Transfer Ratio (hFE), MIN: 200
Package: SP0
