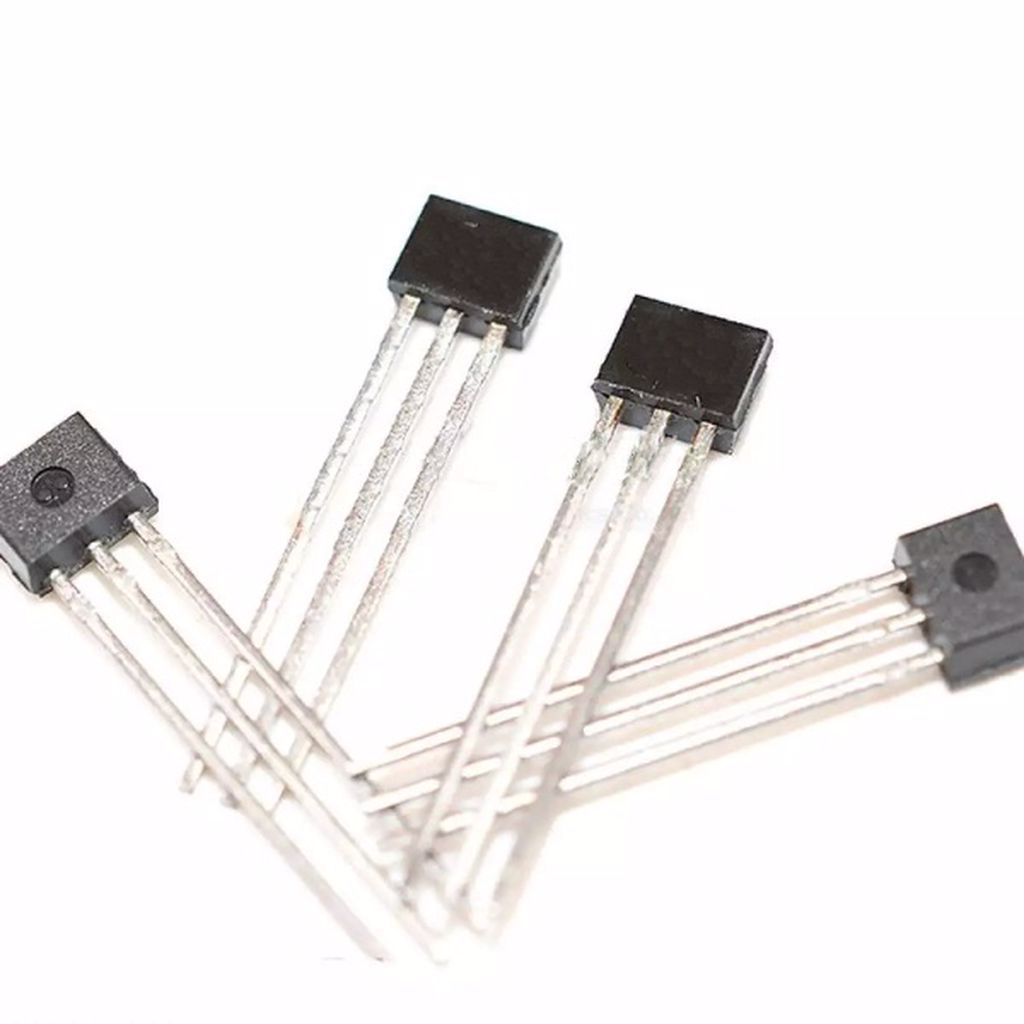

2SA1267 TO-92S 0.15A 50V 200MW PNP TRANSISTOR
₺3,63 + KDV
Kategori
Stok Kodu
TR2158
Fiyat
3,63 TL + KDV
*0,41 TL den başlayan taksitlerle!
2SA1267 TO-92S 0.15A 50V 200MW PNP TRANSISTOR
2SA1267
Type Designator: 2SA1267
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector Current |Ic max|: 0.15 A
Max. Operating Junction Temperature (Tj): 120 °C
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN: 80
Package: SOT33
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
2SA1267 TO-92S 0.15A 50V 200MW PNP TRANSISTOR
2SA1267
Type Designator: 2SA1267
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector Current |Ic max|: 0.15 A
Max. Operating Junction Temperature (Tj): 120 °C
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN: 80
Package: SOT33
