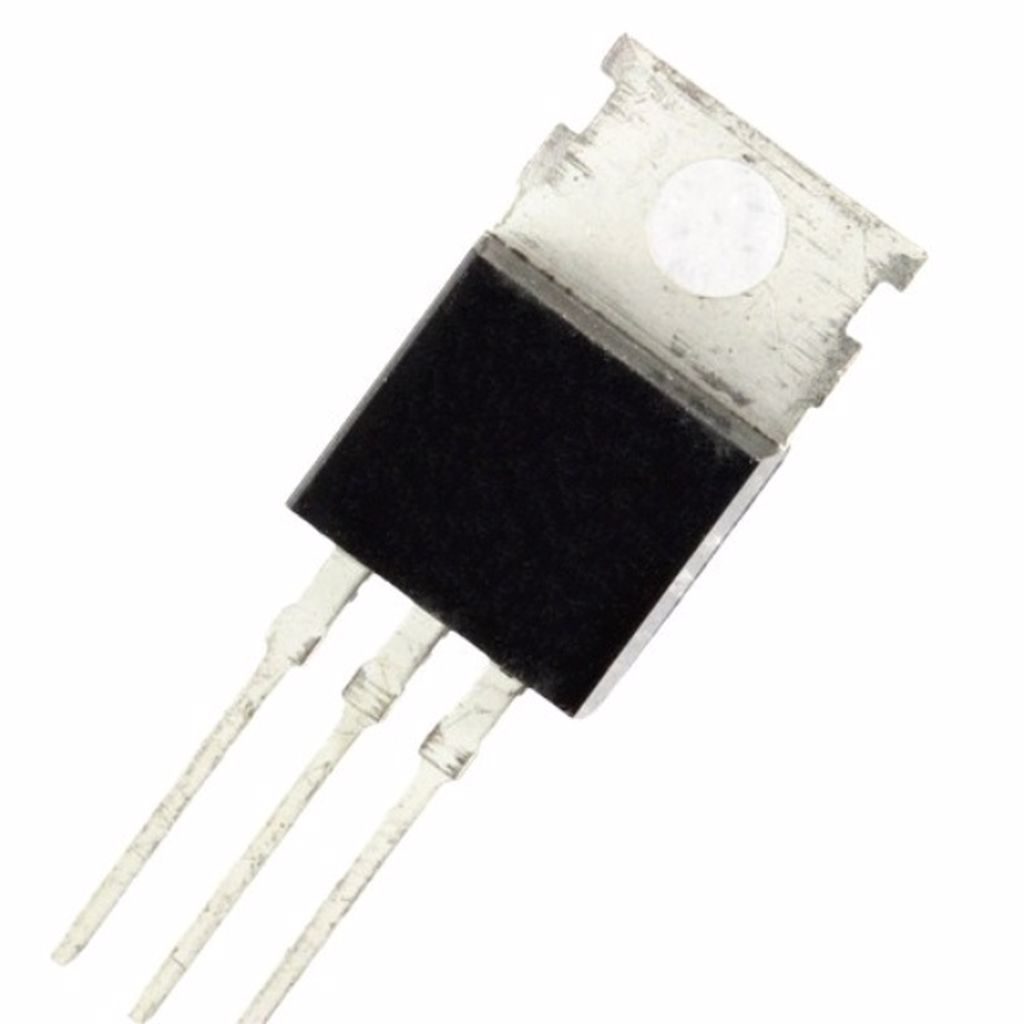

2SA1276 TO-220 3A 30V 10W PNP TRANSISTOR
₺12,46 + KDV
201 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR2153
Fiyat
12,46 TL + KDV
*1,39 TL den başlayan taksitlerle!
2SA1276 TO-220 3A 30V 10W PNP TRANSISTOR
2SA1276
Type Designator: 2SA1276
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 12 pF
Forward Current Transfer Ratio (hFE), MIN: 120
Package: TO220
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
2SA1276 TO-220 3A 30V 10W PNP TRANSISTOR
2SA1276
Type Designator: 2SA1276
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 12 pF
Forward Current Transfer Ratio (hFE), MIN: 120
Package: TO220
