2SA1546

Type Designator: 2SA1546

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 1.3 W

Maximum Collector-Base Voltage |Vcb|: 250 V

Maximum Collector-Emitter Voltage |Vce|: 250 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 300 MHz

Forward Current Transfer Ratio (hFE), MIN: 180

Noise Figure, dB: -

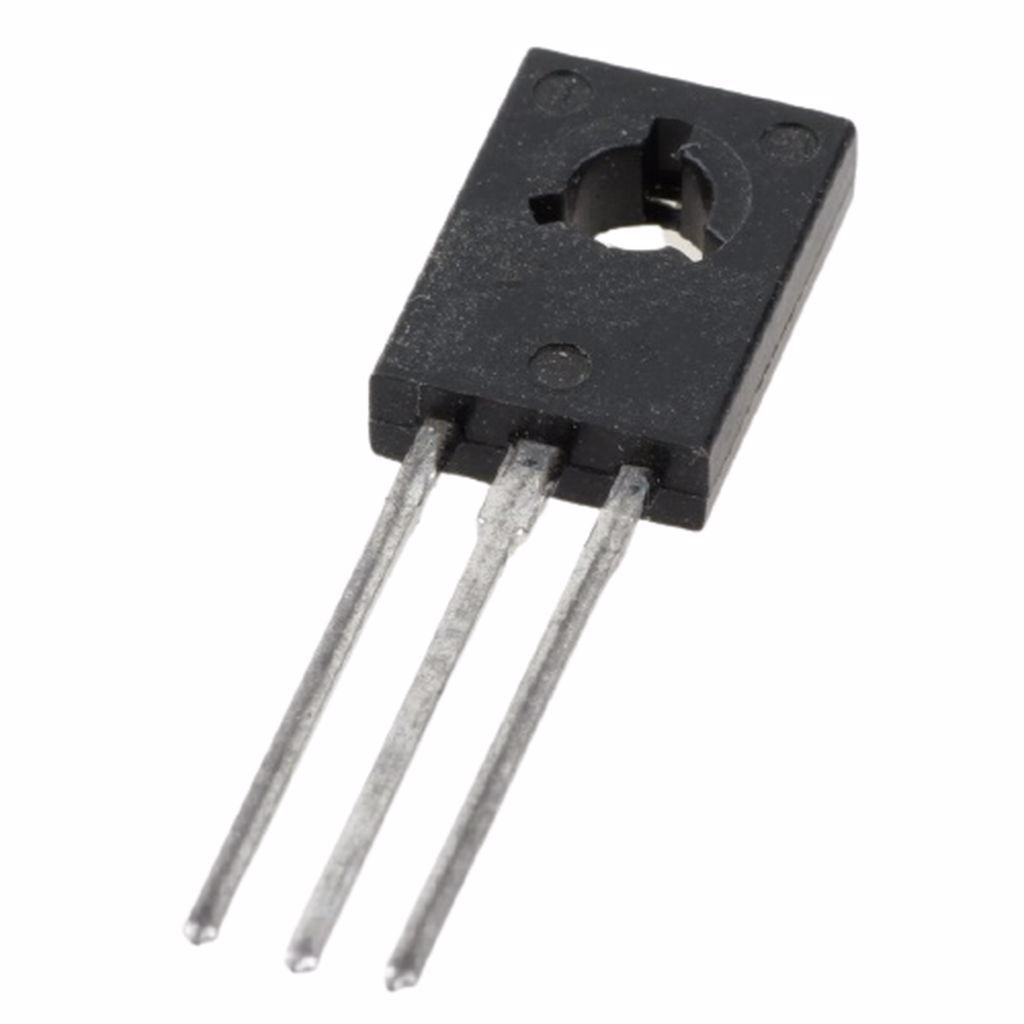

Package: TO126
