2SA2125-TD-E - (AY 7C) SOT-89 3A 50V 1.3W PNP TRANSISTOR
2SA2125-TD-E
Type Designator: 2SA2125-TD-E
SMD Transistor Code: AY
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1.3 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 390 MHz
Collector Capacitance (Cc): 24 pF
Forward Current Transfer Ratio (hFE), MIN: 200

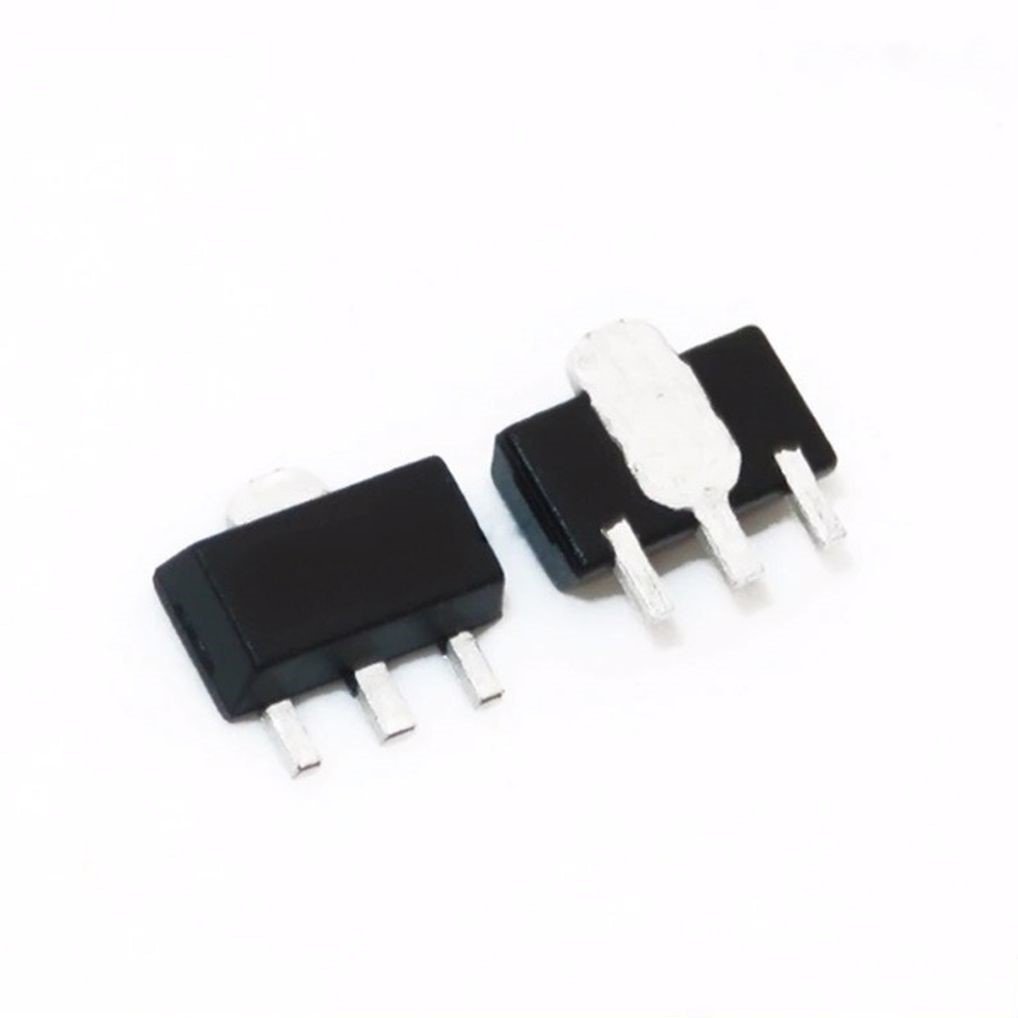

Package: SOT89
Ürün Bilgisi
2SA2125-TD-E
Type Designator: 2SA2125-TD-E
SMD Transistor Code: AY
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1.3 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 390 MHz
Collector Capacitance (Cc): 24 pF
Forward Current Transfer Ratio (hFE), MIN: 200
Package: SOT89
