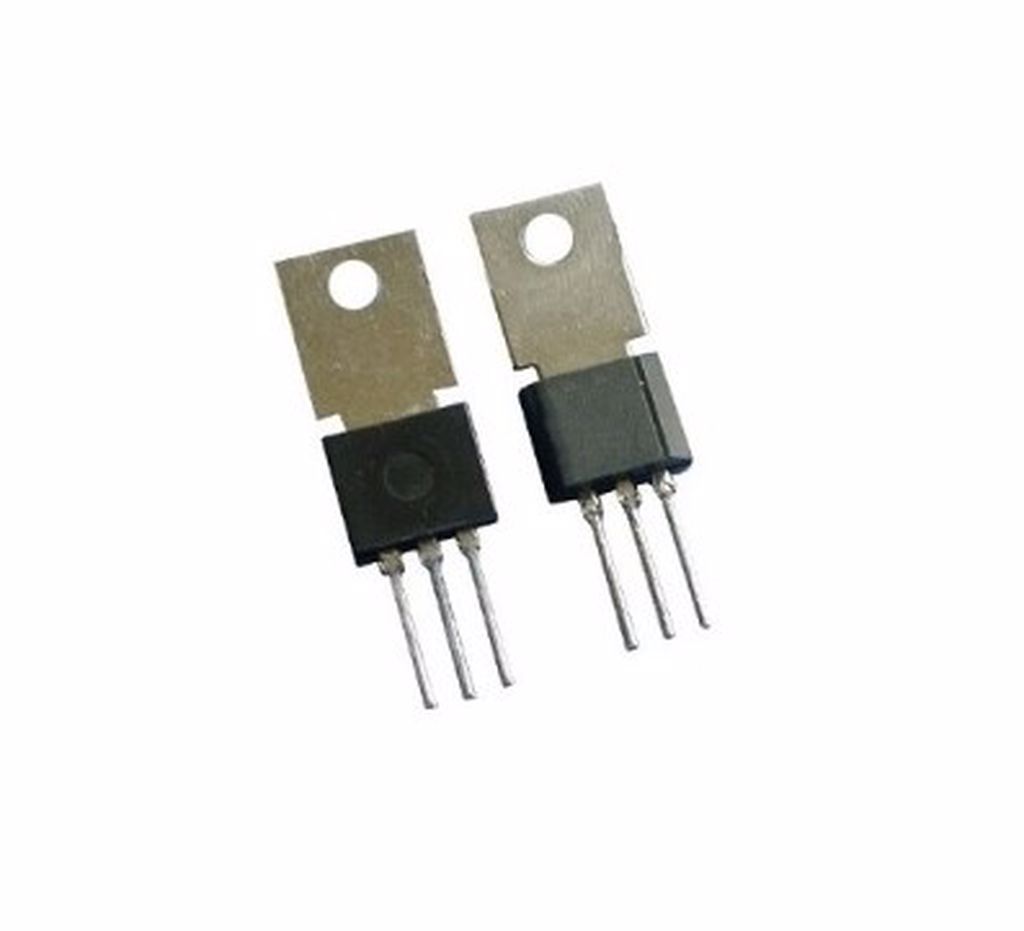

2SC1096 TO-202 35V 2A 10W 60MHz NPN TRANSISTOR
2SC1096
Type Designator: 2SC1096
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 35 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Package: X104-1
Ürün Bilgisi
2SC1096
Type Designator: 2SC1096
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 35 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Package: X104-1
