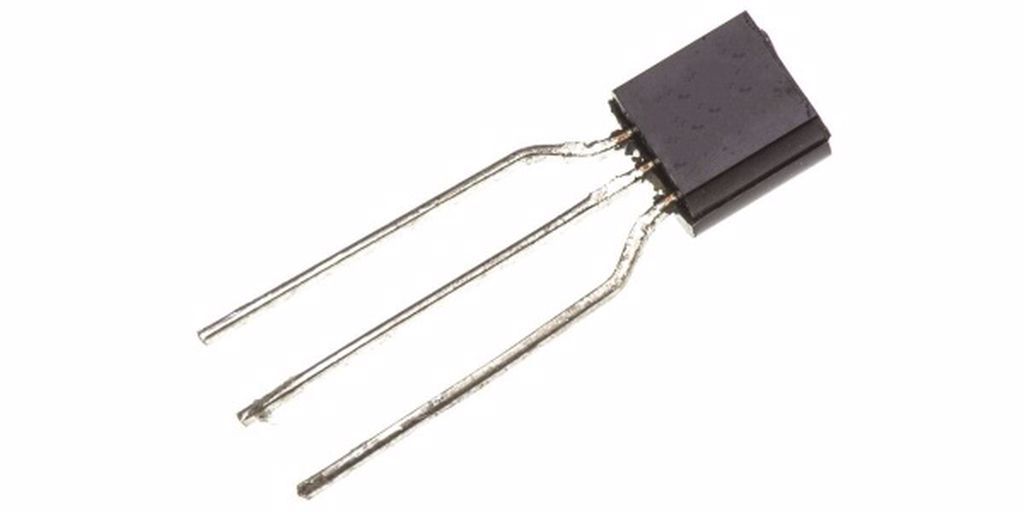

DTC114ESA TO-92S 0.1A 50V 0.3W NPN TRANSISTOR
DTC114ESA TO-92S 0.1A 50V 0.3W NPN TRANSISTOR
Type Designator: DTC114ESA
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 10 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Noise Figure, dB: -
Package: TO92S
Ürün Bilgisi
DTC114ESA TO-92S 0.1A 50V 0.3W NPN TRANSISTOR
Type Designator: DTC114ESA
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 10 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Noise Figure, dB: -
Package: TO92S
