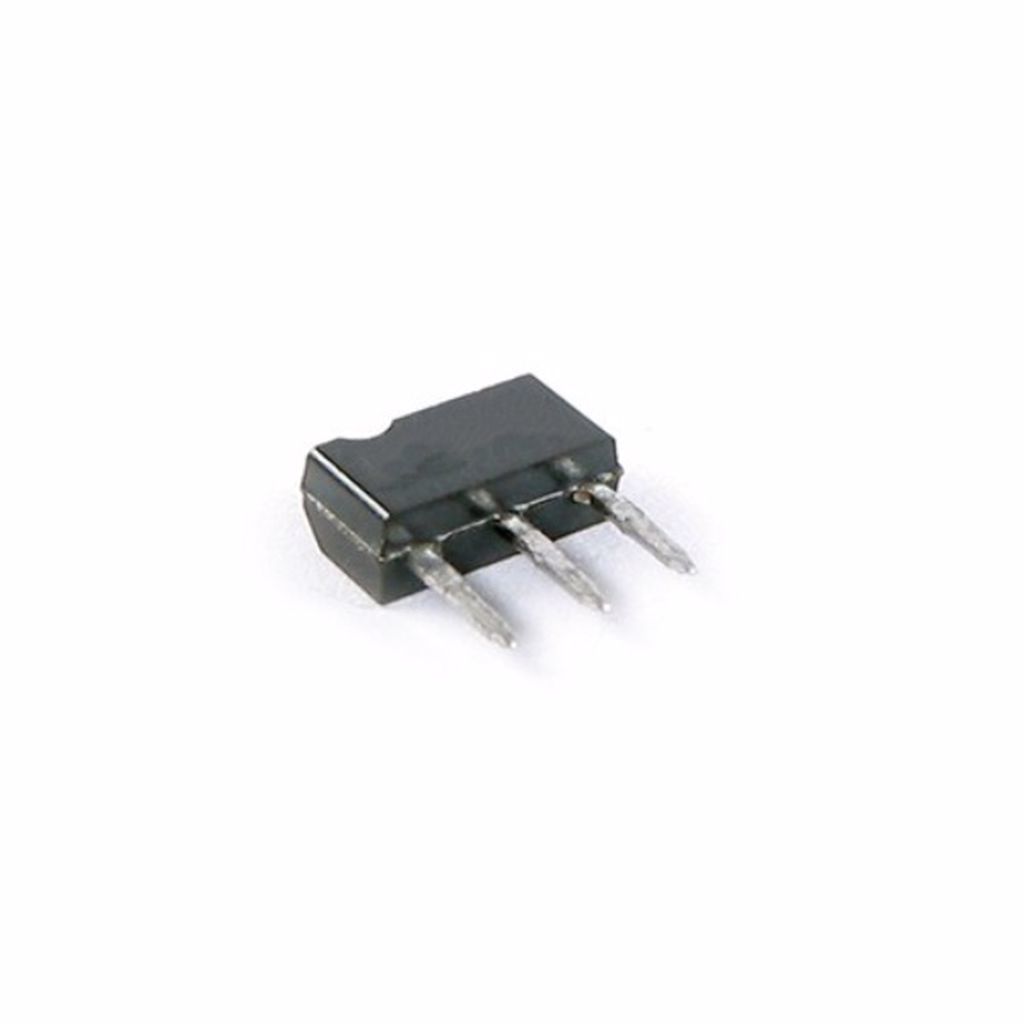

2SC2021

Type Designator: 2SC2021

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 90 MHz

Collector Capacitance (Cc): 2 pF

Forward Current Transfer Ratio (hFE), MIN: 120

Noise Figure, dB: -

Package: SOT33
