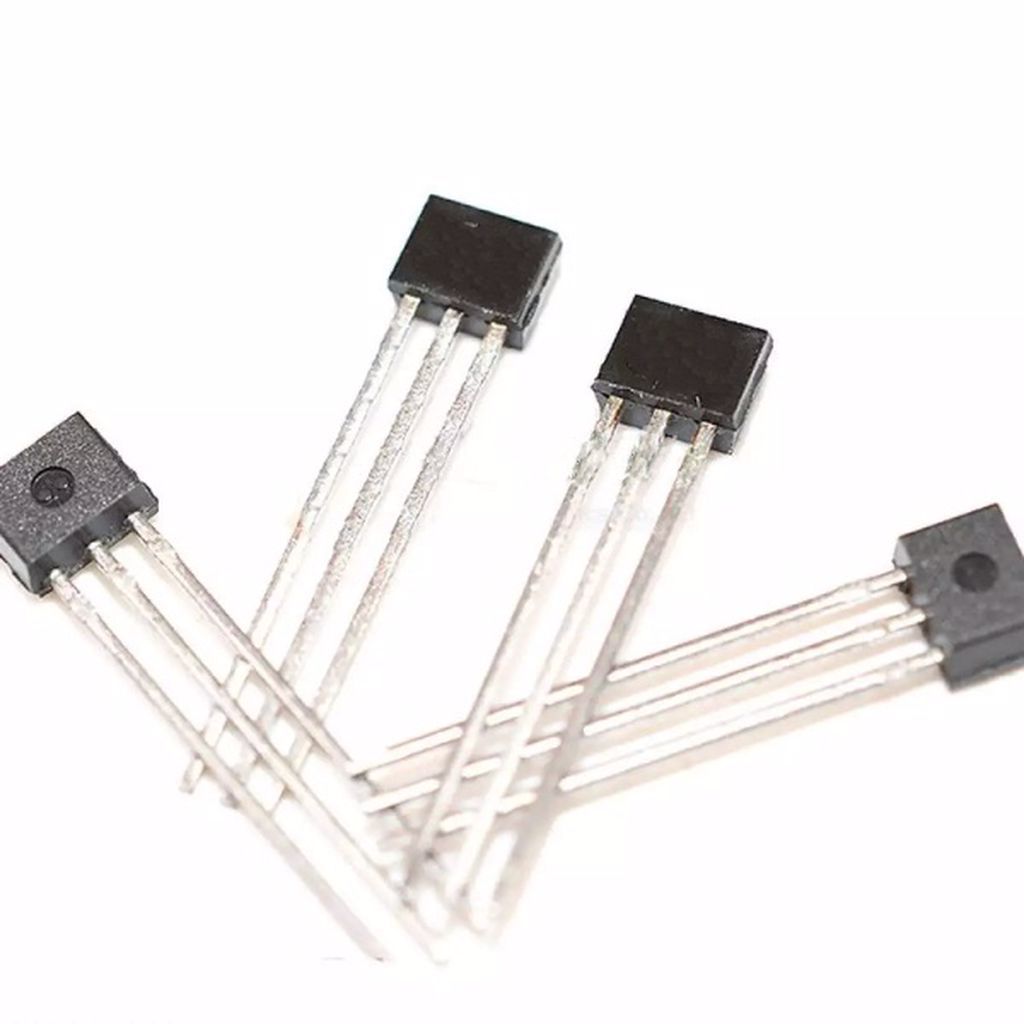

2SC2785 TO-92S 100mA 60V PNP TRANSISTOR
2SC2785
Type Designator: 2SC2785
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 3 pF
Forward Current Transfer Ratio (hFE), MIN: 200
Noise Figure, dB: -
Ürün Bilgisi
2SC2785
Type Designator: 2SC2785
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 3 pF
Forward Current Transfer Ratio (hFE), MIN: 200
Noise Figure, dB: -
