2SC2873-Y - (MY) SOT-89 50V 2A 0.5W NPN TRANSISTOR
2SC2873-Y
Type Designator: 2SC2873-Y
SMD Transistor Code: MY
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 120

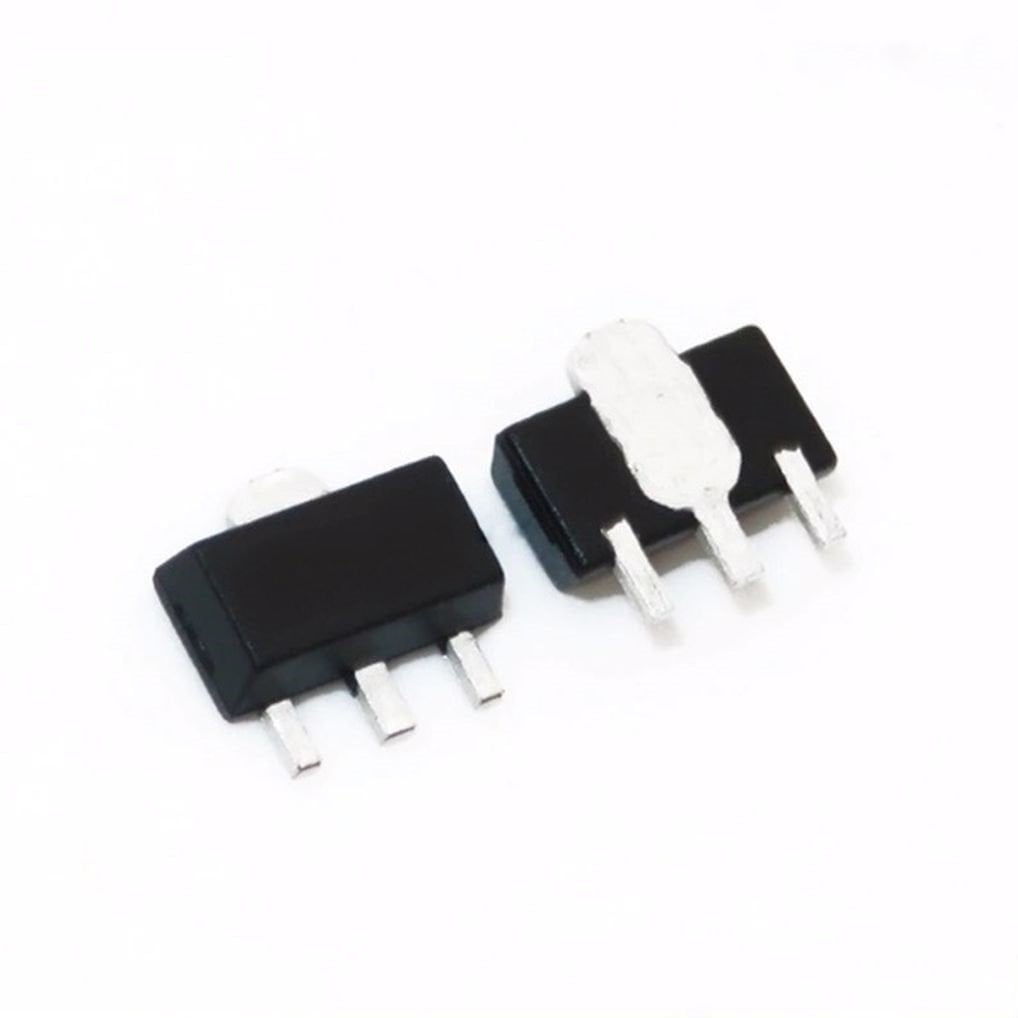

Package: SOT89
