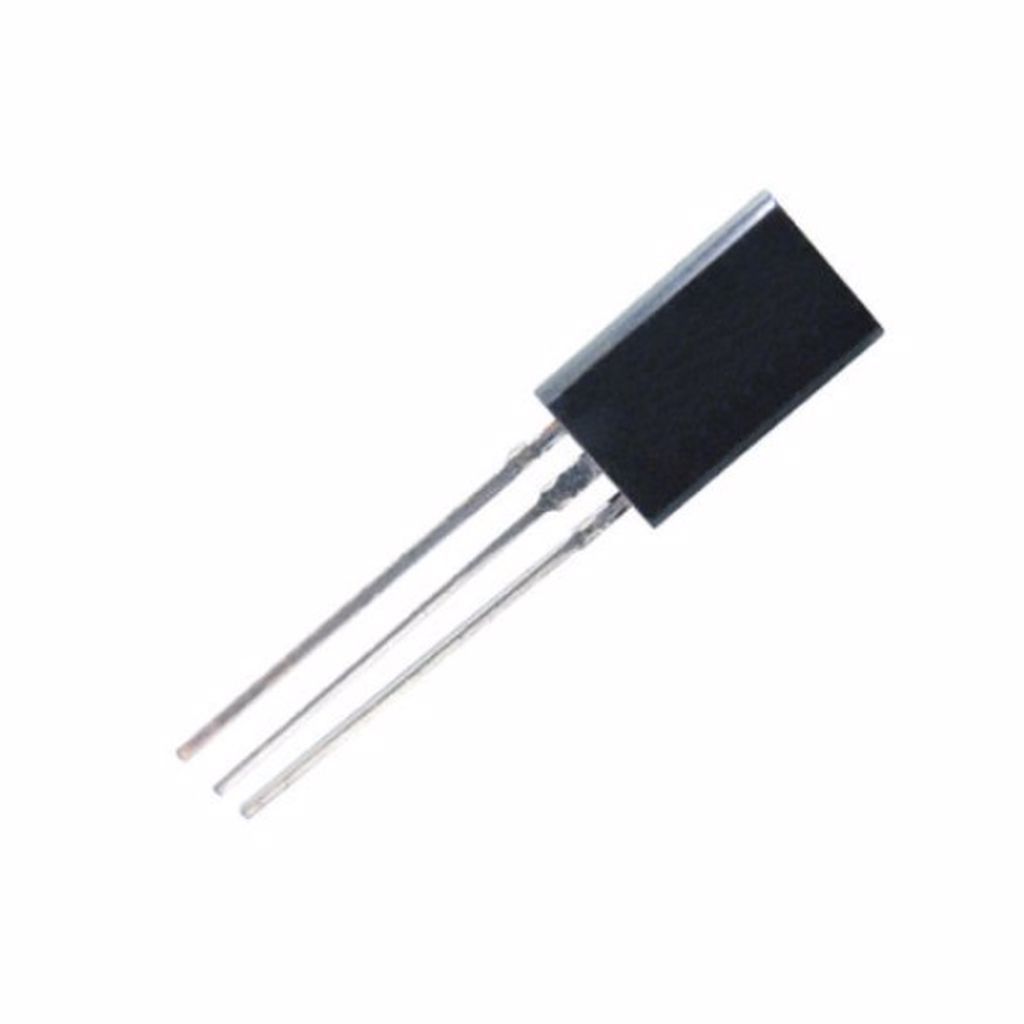

2SC3328 TO-92L 80V 2A 0.9W NPN TRANSISTOR
2SC3328
Type Designator: 2SC3328
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: TO92
Ürün Bilgisi
2SC3328
Type Designator: 2SC3328
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: TO92
