2SC3964

Type Designator: 2SC3964

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 1.5 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 40 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 2 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 220 MHz

Collector Capacitance (Cc): 20 pF

Forward Current Transfer Ratio (hFE), MIN: 500

Noise Figure, dB: -

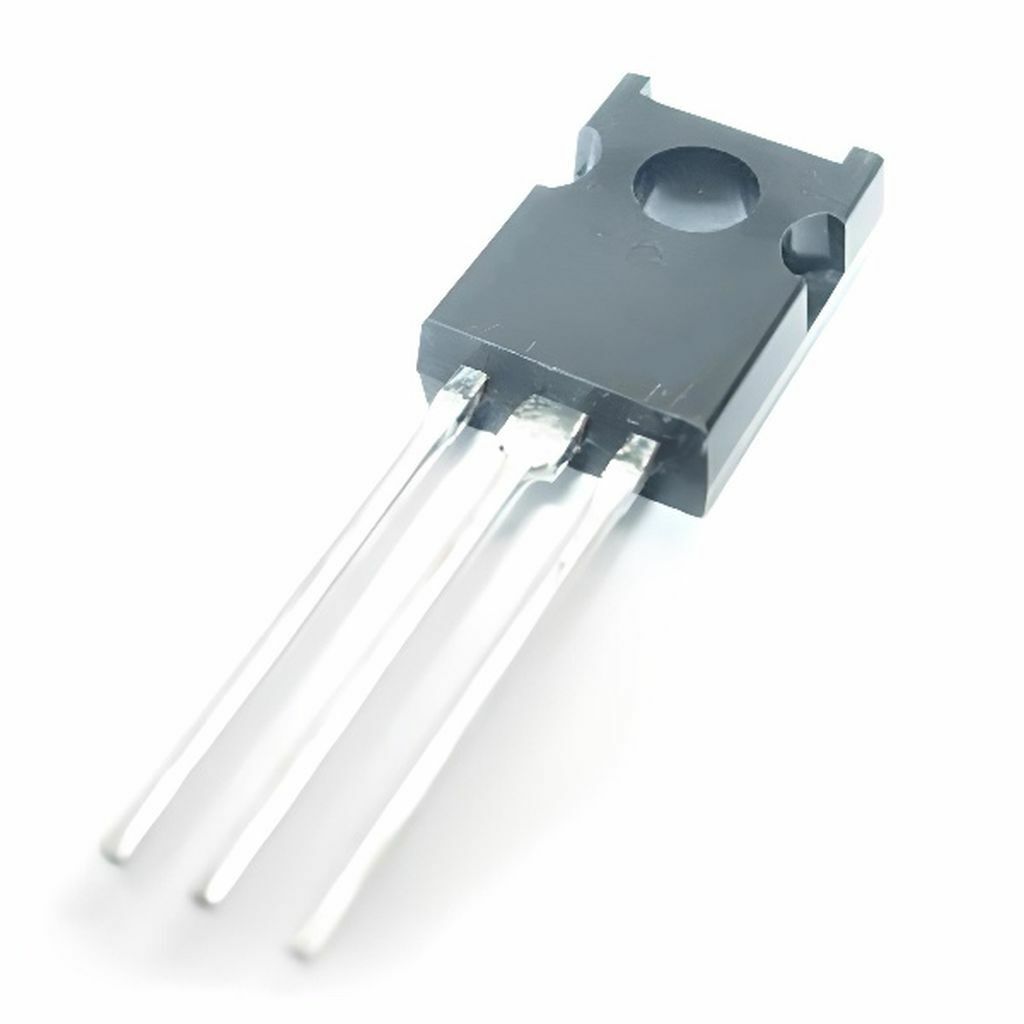

Package: ISO126
