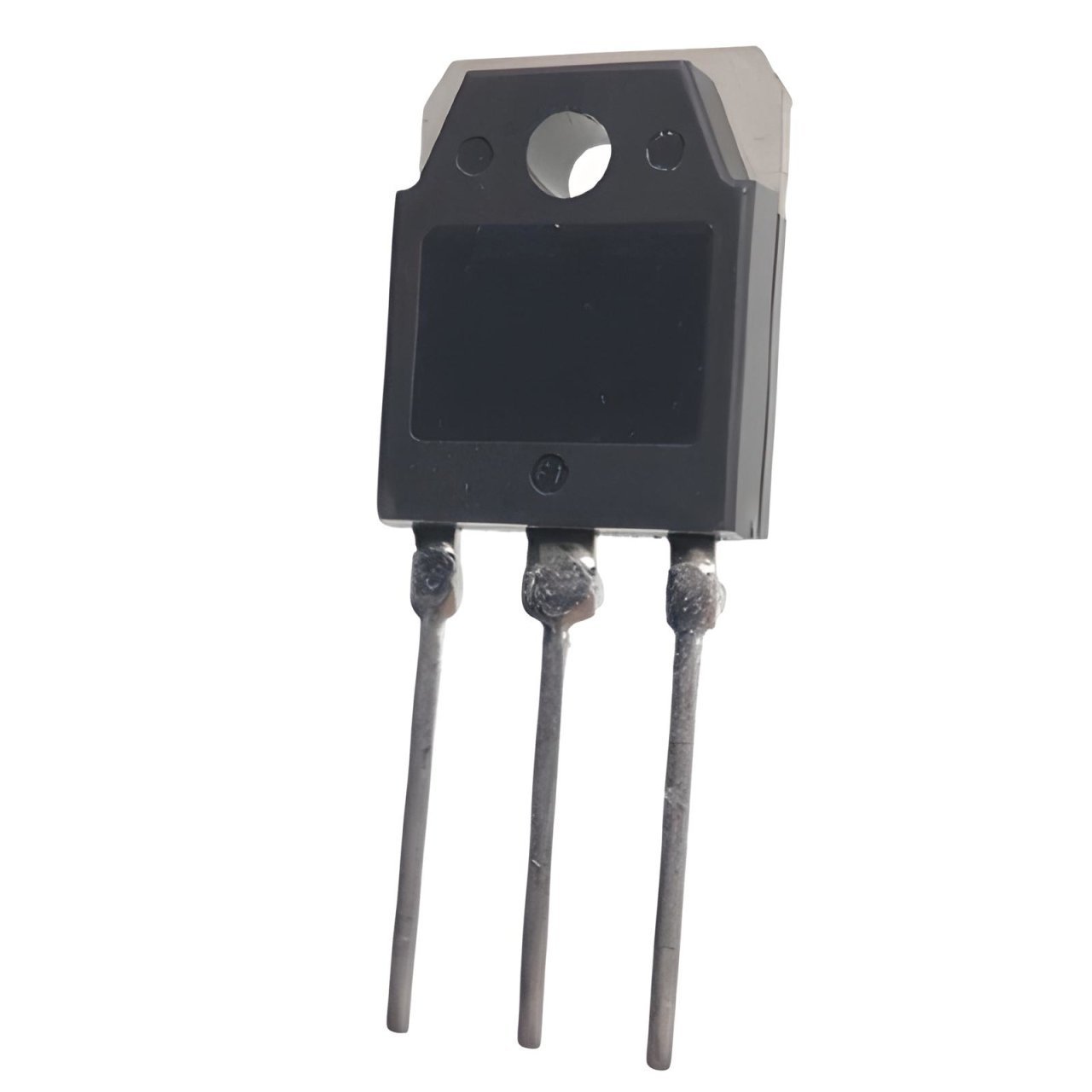

2SC4468 TO-3P 10A 200V NPN TRANSISTOR - ONLİNE ÖZEL FİYAT
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
2,00 USD + KDV
*9,38 TL den başlayan taksitlerle!
100,92 TL
2SC4468
Type Designator: 2SC4468
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO3P
Bu ürüne ilk yorumu siz yapın!
