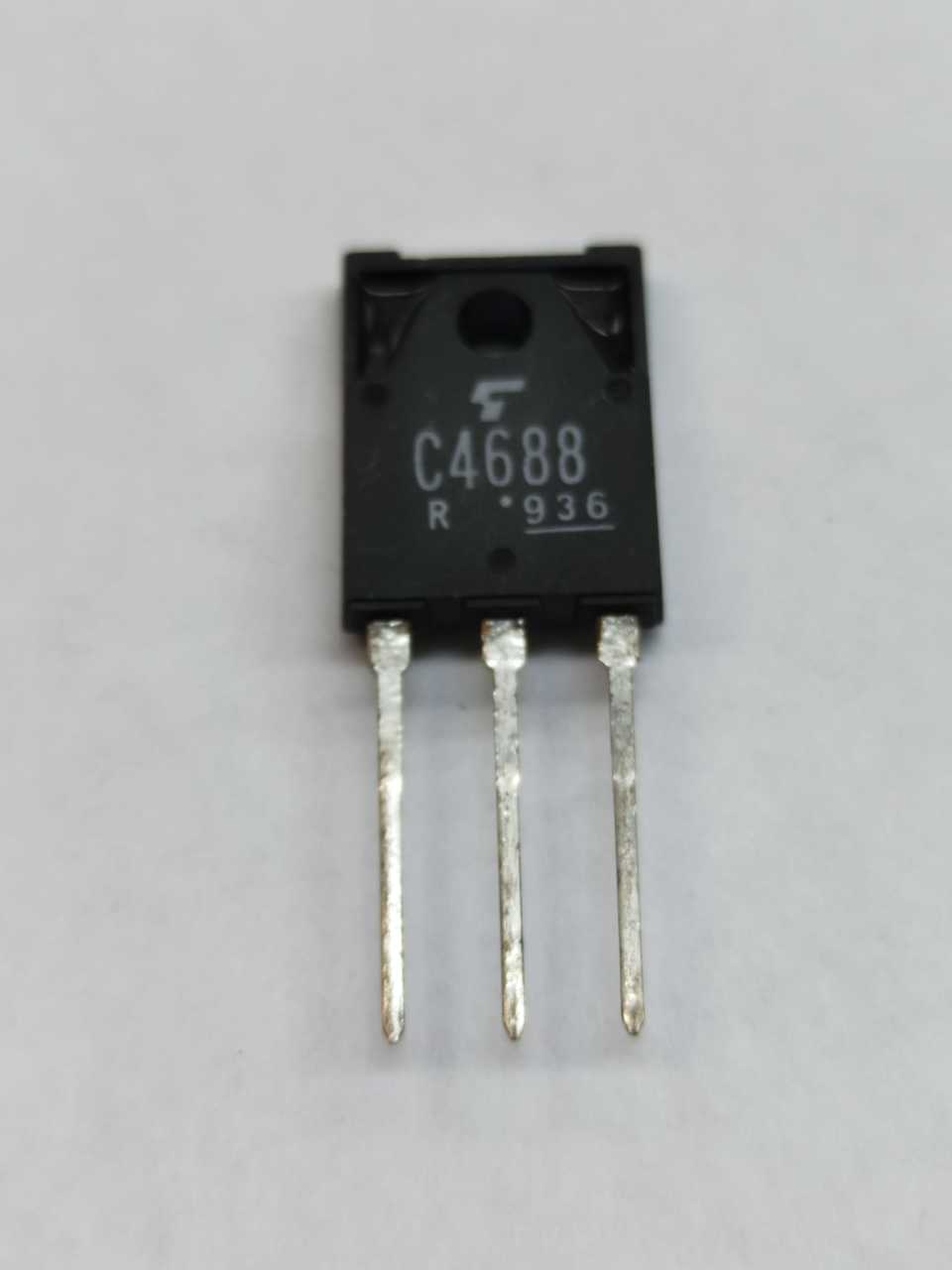

2SC4688 TO-247 80V 6A 55W NPN TRANSISTOR
2SC4688
Type Designator: 2SC4688
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 55 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 105 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: ISO247
Ürün Bilgisi
2SC4688
Type Designator: 2SC4688
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 55 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 105 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: ISO247
