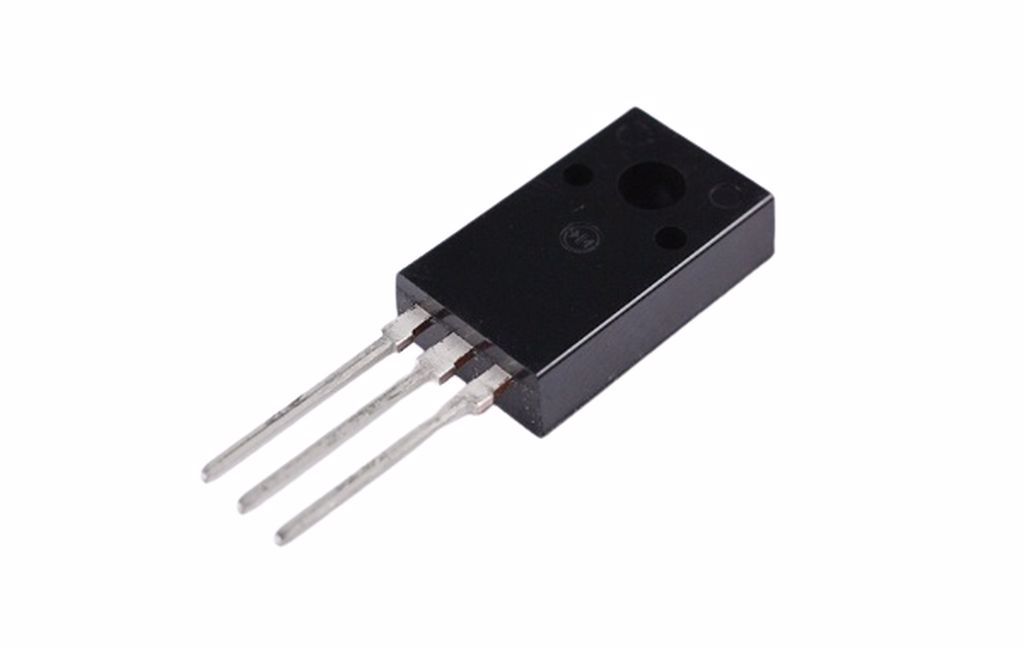

2SC4814 TO-220F 120V 2.5A 1.8W NPN TRANSISTOR
2SC4814
Type Designator: 2SC4814
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.8 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 2.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 250
Noise Figure, dB: -
Ürün Bilgisi
2SC4814
Type Designator: 2SC4814
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.8 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 2.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 250
Noise Figure, dB: -
