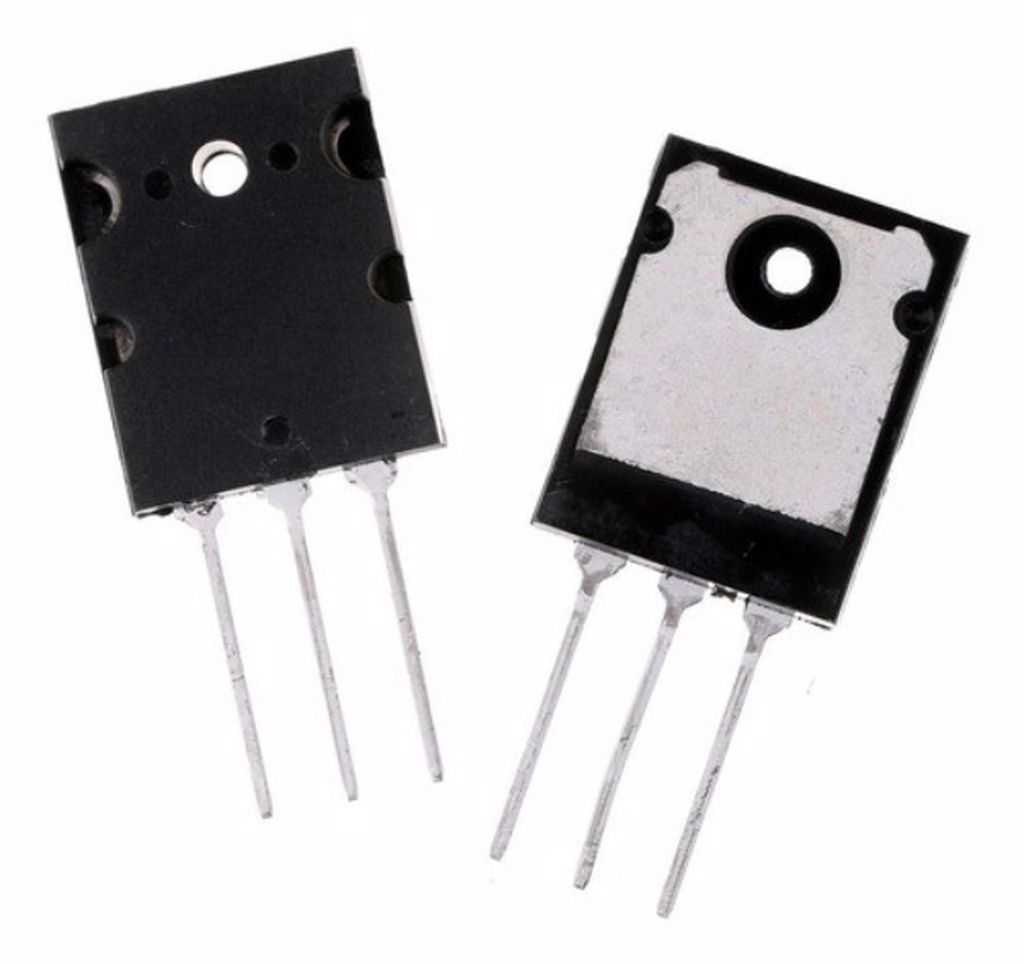

2SC5244A TO-3PL 1600V 30A 200W NPN TRANSISTOR
2SC5244A
Type Designator: 2SC5244A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 200 W
Maximum Collector-Base Voltage |Vcb|: 1600 V
Maximum Collector-Emitter Voltage |Vce|: 1600 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 30 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 5
Package: TOP-3L
