2SD1020

Type Designator: 2SD1020

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.35 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 25 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.7 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 50 MHz

Collector Capacitance (Cc): 13 pF

Forward Current Transfer Ratio (hFE), MIN: 70

Noise Figure, dB: -

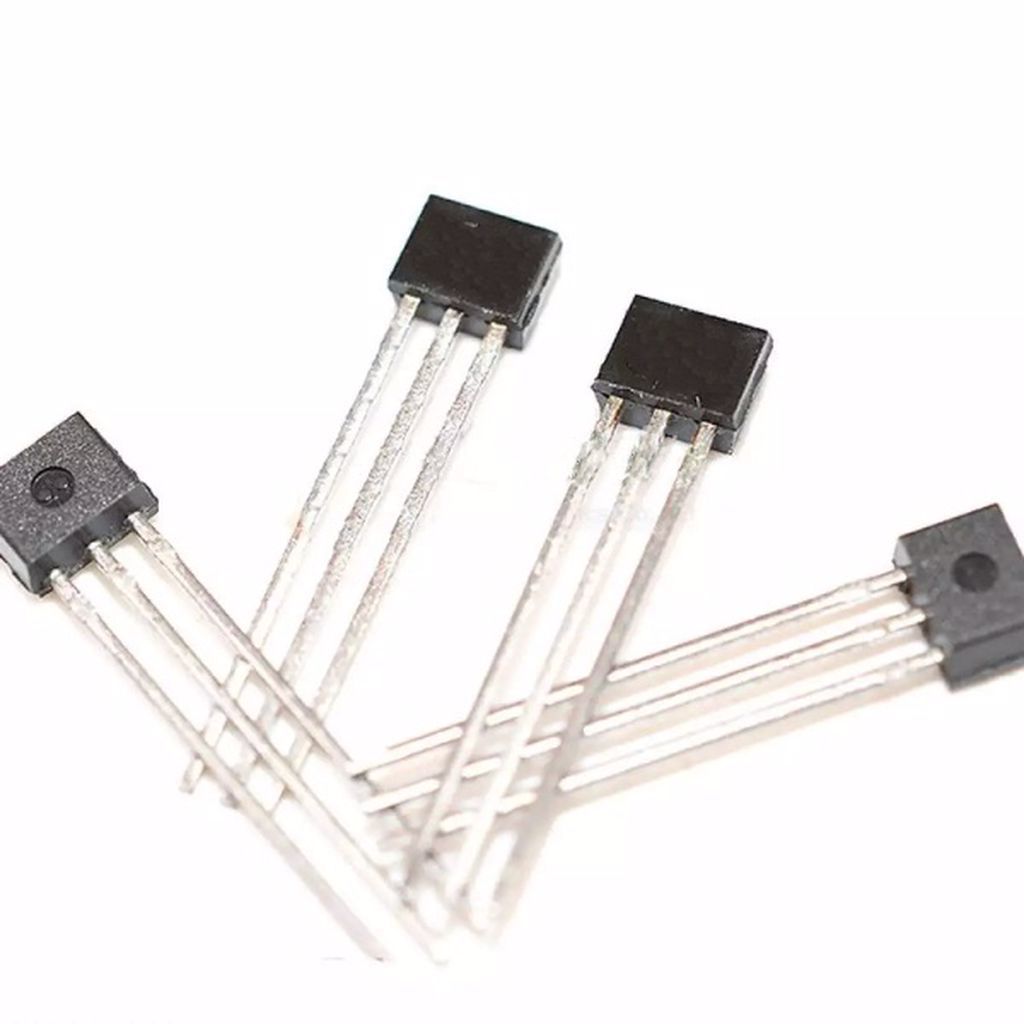

Package: TO92
