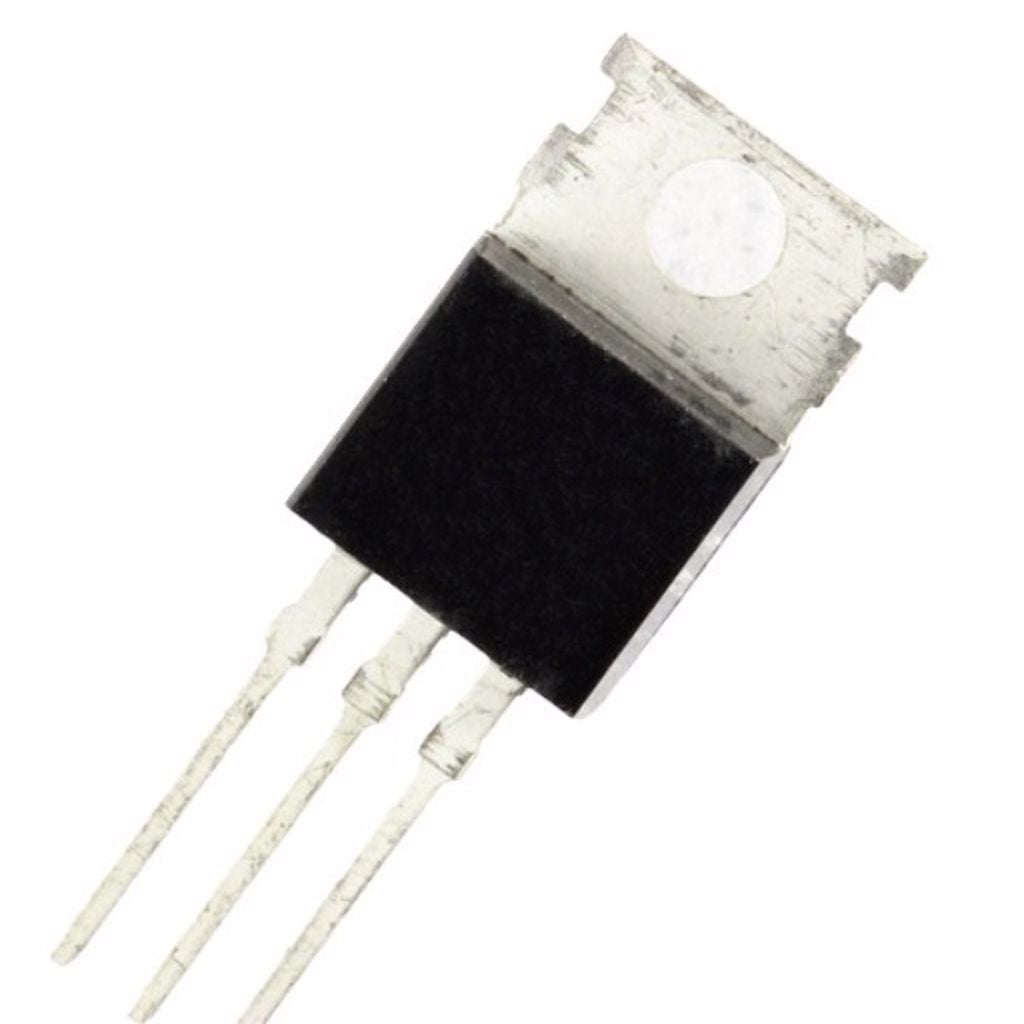

2SD1052A TO-220 3A 50V 30W NPN TRANSISTOR
2SD1052A
Type Designator: 2SD1052A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 5 MHz
Collector Capacitance (Cc): 70 pF
Forward Current Transfer Ratio (hFE), MIN: 400
Package: TO220
Ürün Bilgisi
2SD1052A
Type Designator: 2SD1052A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 5 MHz
Collector Capacitance (Cc): 70 pF
Forward Current Transfer Ratio (hFE), MIN: 400
Package: TO220
