2SD1403

Type Designator: 2SD1403

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 120 W

Maximum Collector-Base Voltage |Vcb|: 1500 V

Maximum Collector-Emitter Voltage |Vce|: 800 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 6 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 3 MHz

Forward Current Transfer Ratio (hFE), MIN: 8

Noise Figure, dB: -

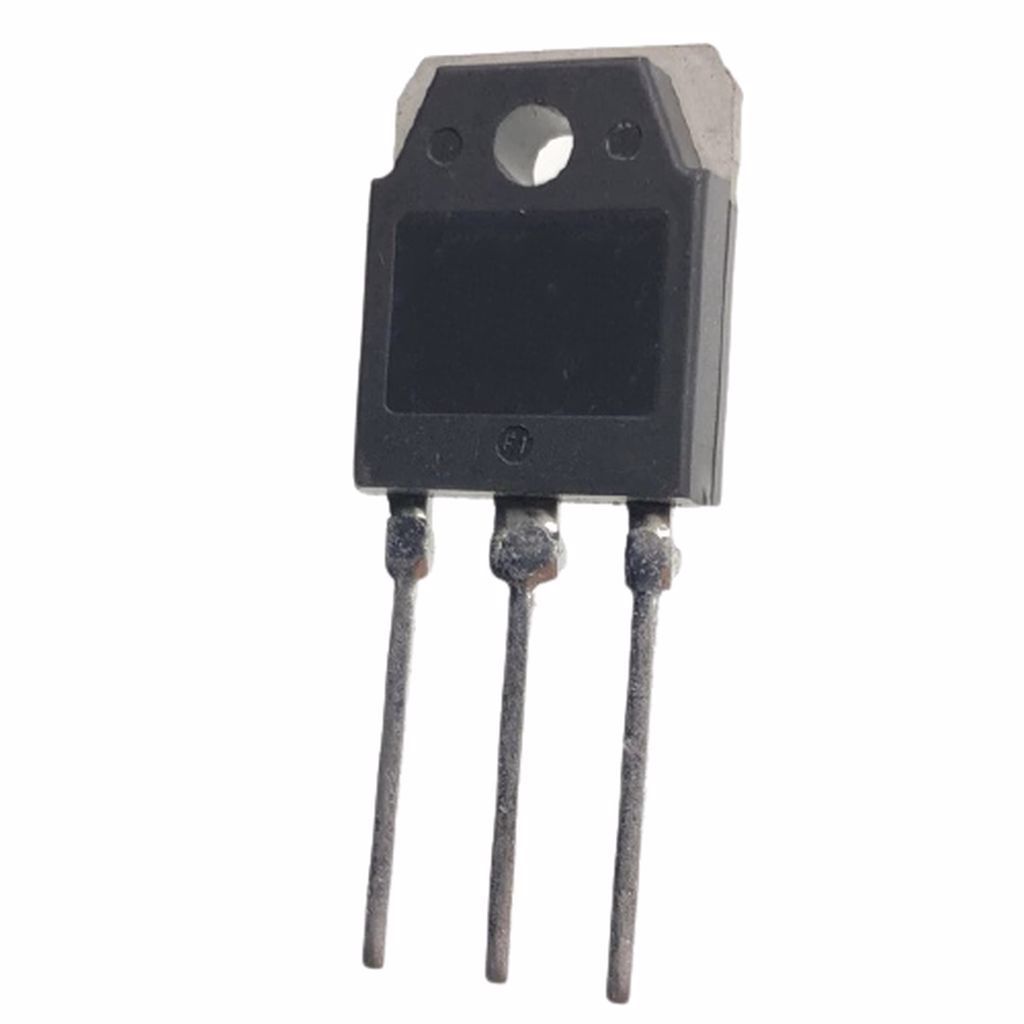

Package: TO247
