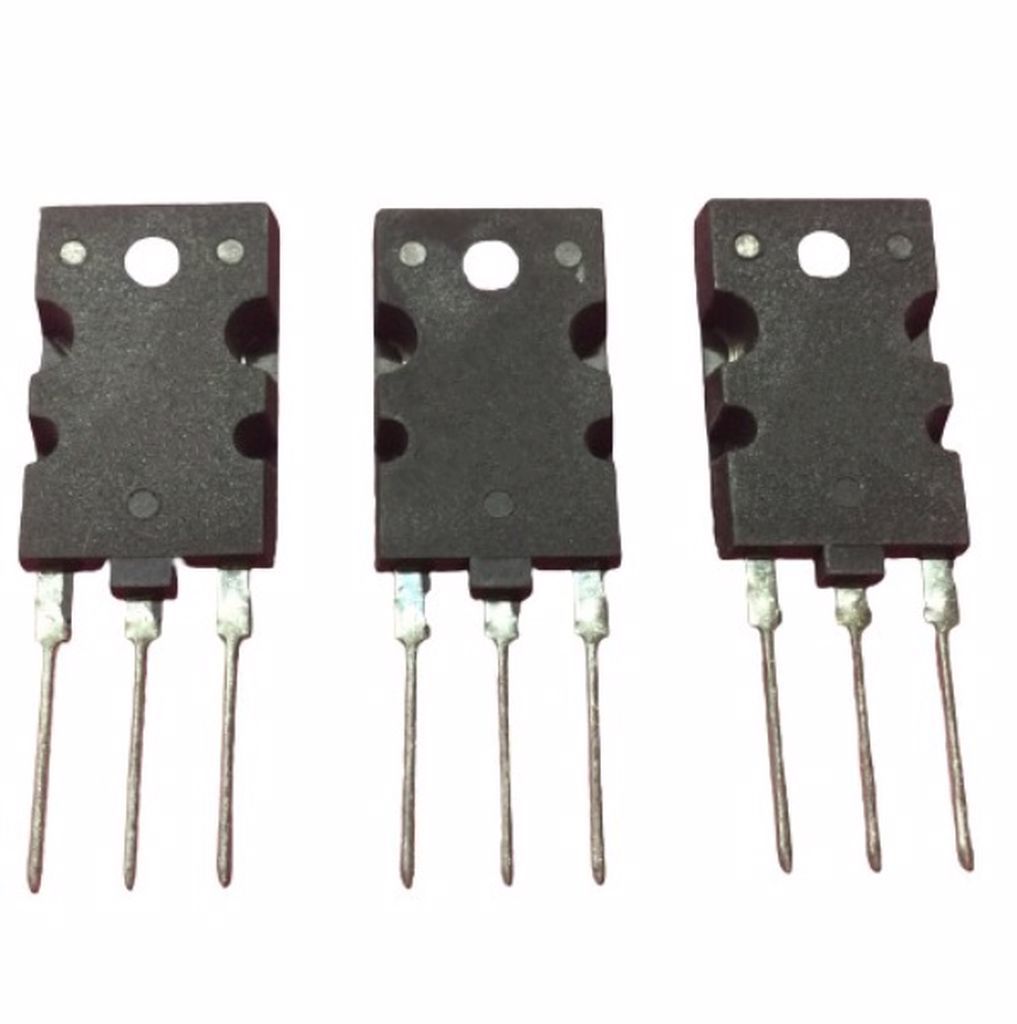

2SD1426 TO-3PH 3.5A 1500V 80W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
48 Adet
Fiyat
0,88 USD + KDV
*4,13 TL den başlayan taksitlerle!
44,41 TL
2SD1426 TO-3PH 3.5A 1500V 80W NPN TRANSISTOR
2SD1426
Type Designator: 2SD1426
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 600 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Collector Capacitance (Cc): 95 pF
Forward Current Transfer Ratio (hFE), MIN: 8
Package: TO247
