2SD600K

Type Designator: 2SD600K

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 8 W

Maximum Collector-Base Voltage |Vcb|: 100 V

Maximum Collector-Emitter Voltage |Vce|: 100 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 130 MHz

Collector Capacitance (Cc): 20 pF

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -

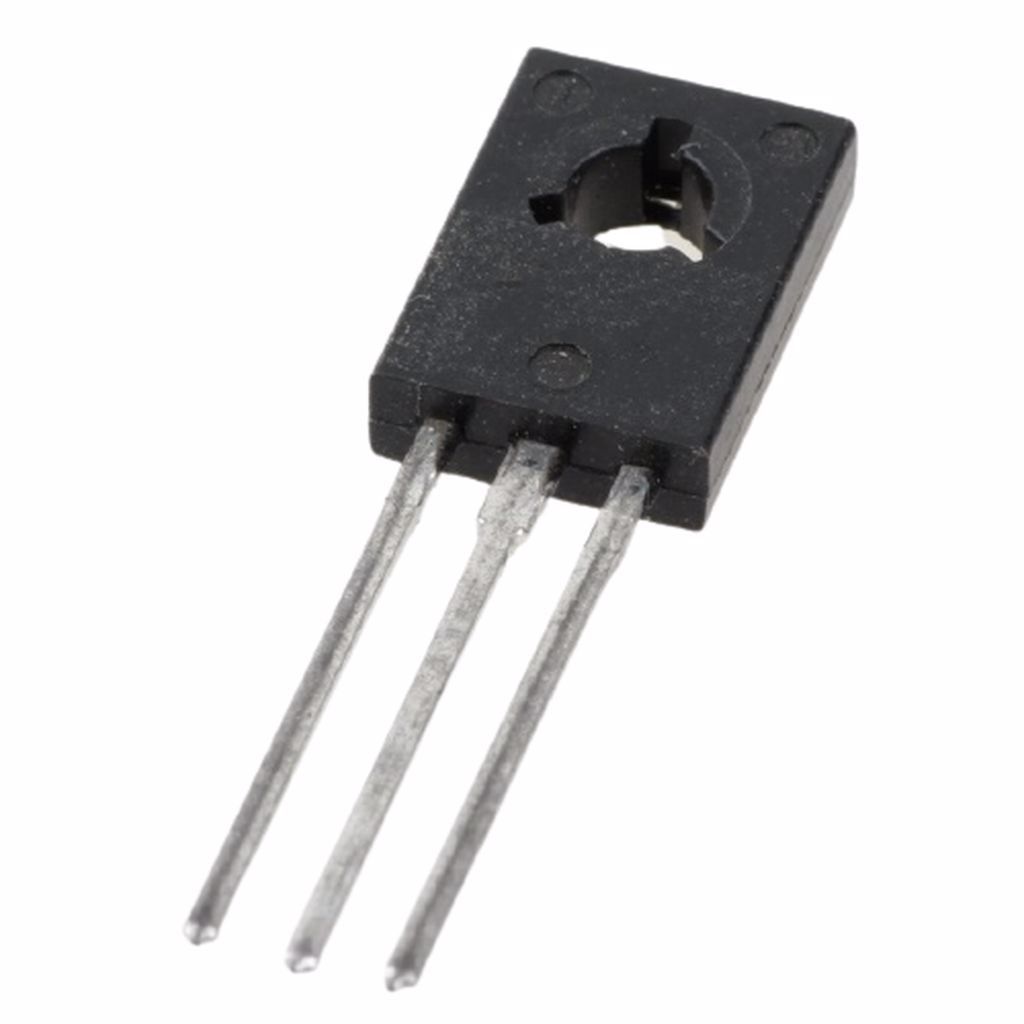

Package: TO126
