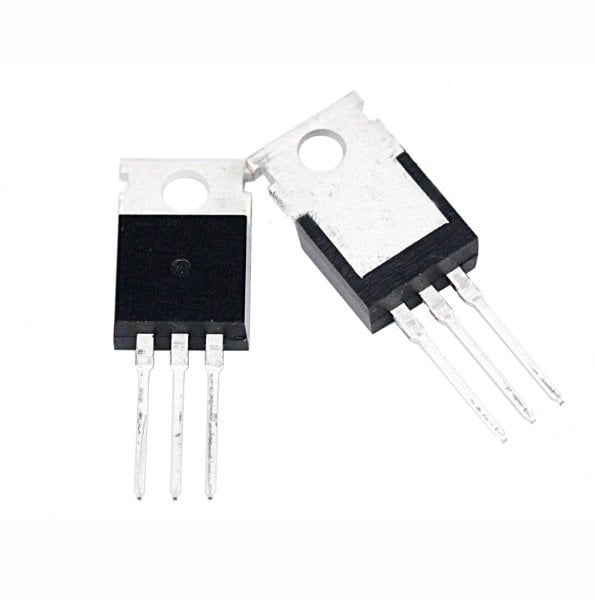

2SD880-Y TO-220 60V 3A NPN TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
62 Adet
Fiyat
0,34 USD + KDV
*1,46 TL den başlayan taksitlerle!
15,68 TL
2SD880Y
Type Designator: 2SD880Y
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Collector Capacitance (Cc): 70 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO220
