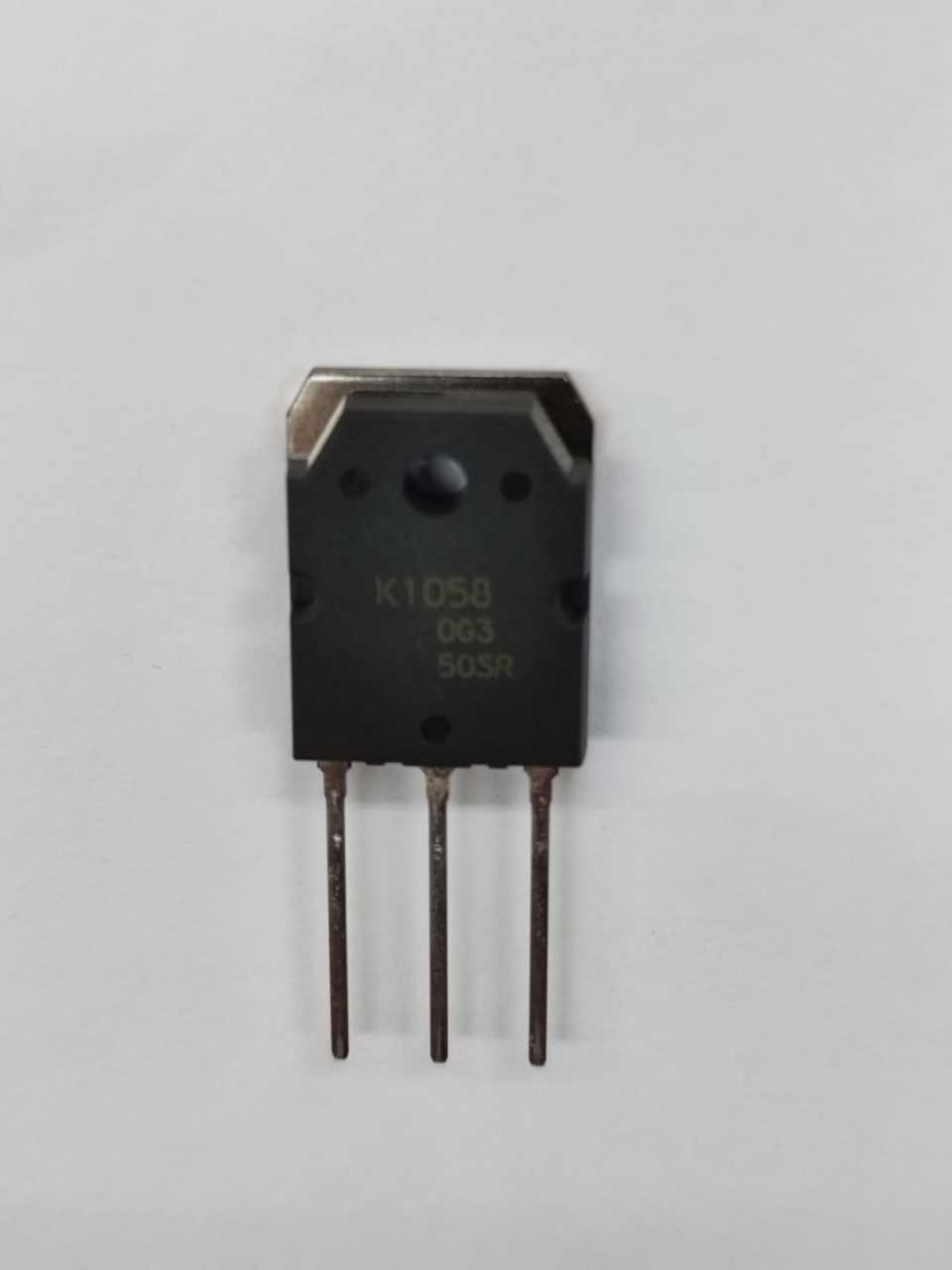

2SK1058 TO-3P 7A 160V N-CHANNEL MOSFET TRANSISTOR
2SK1058
Type Designator: 2SK1058
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 160 V
Maximum Gate-Source Voltage |Vgs|: 15 V
Minimum Gate-to-Source Cutoff Voltage |Vgs(off)|: 0.15 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 350 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO3P
