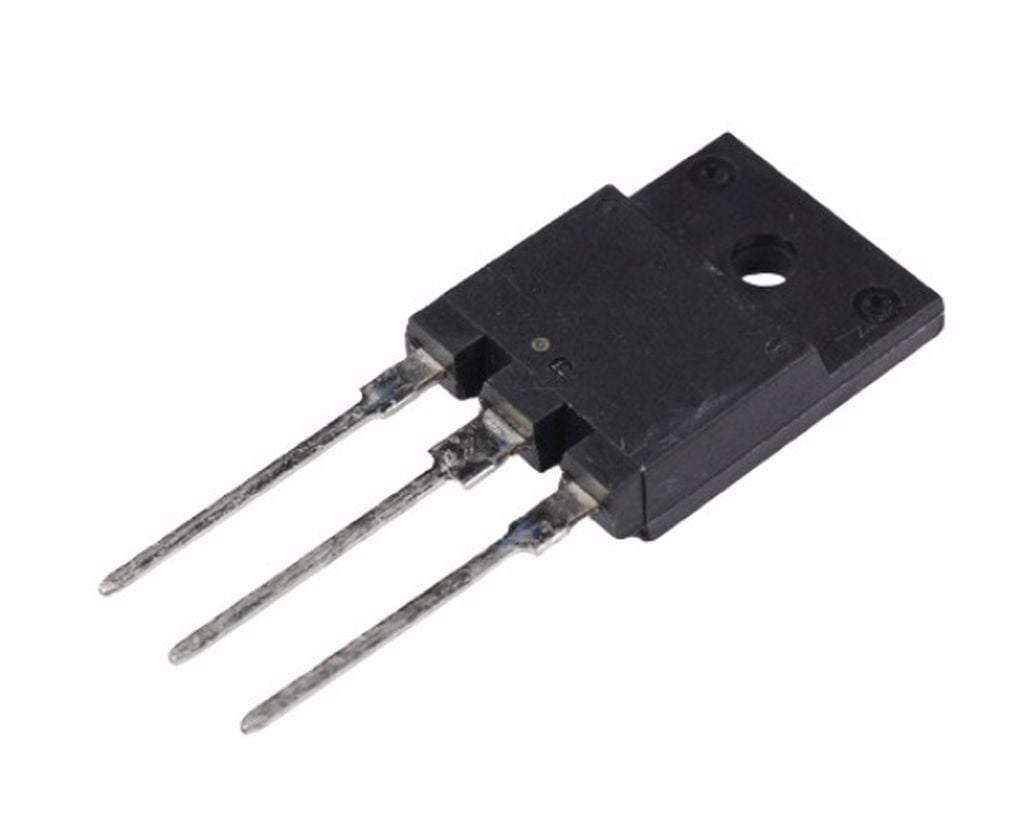

2SK1105 TO-3PF 800V 3A 80W N-CHANNEL MOSFET TRANSISTOR
2SK1105
Type Designator: 2SK1105
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 80 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 40 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO-3PML
Ürün Bilgisi
2SK1105
Type Designator: 2SK1105
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 80 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 40 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO-3PML
