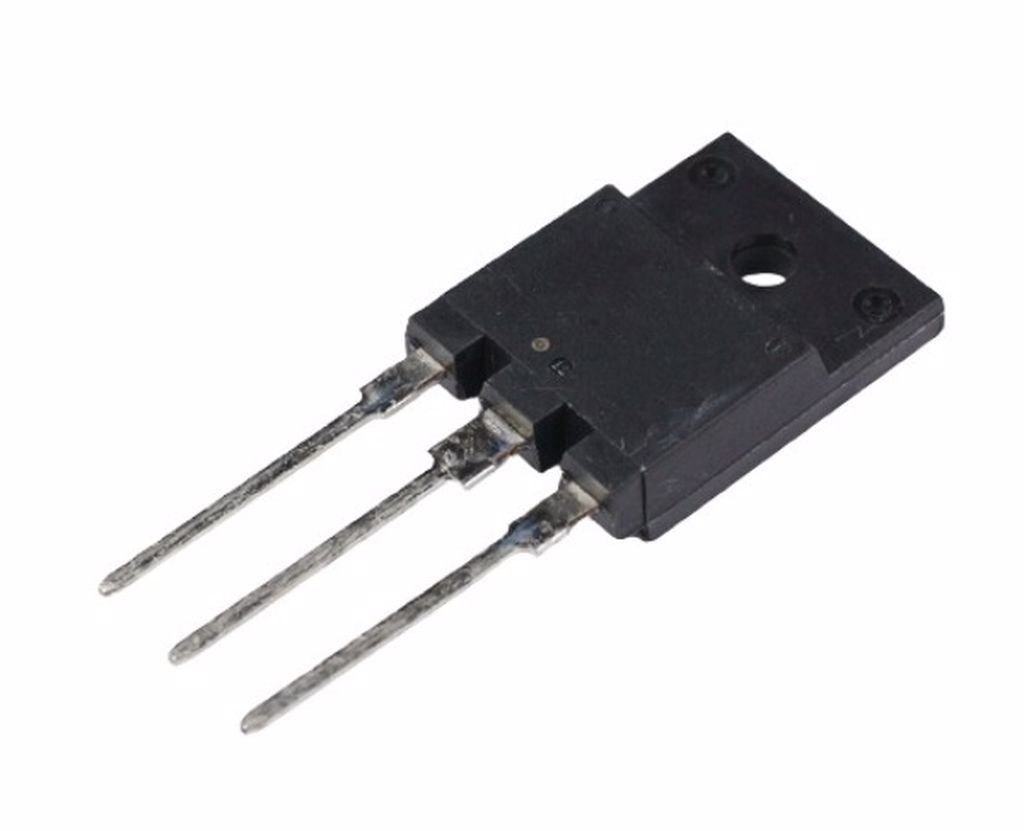

2SK1192 TO-3PF 60V 40A 90W N-CHANNEL MOSFET TRANSISTOR
2SK1192
Type Designator: 2SK1192
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 40 A
Maximum Junction Temperature (Tj): 150 °C
Turn-on Time (ton): 260 nS
Drain-Source Capacitance (Cd): 1200 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm
Package: TO3PF FM100
Ürün Bilgisi
2SK1192
Type Designator: 2SK1192
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 40 A
Maximum Junction Temperature (Tj): 150 °C
Turn-on Time (ton): 260 nS
Drain-Source Capacitance (Cd): 1200 pF
Maximum Drain-Source On-State Resistance (Rds): 0.028 Ohm
Package: TO3PF FM100
