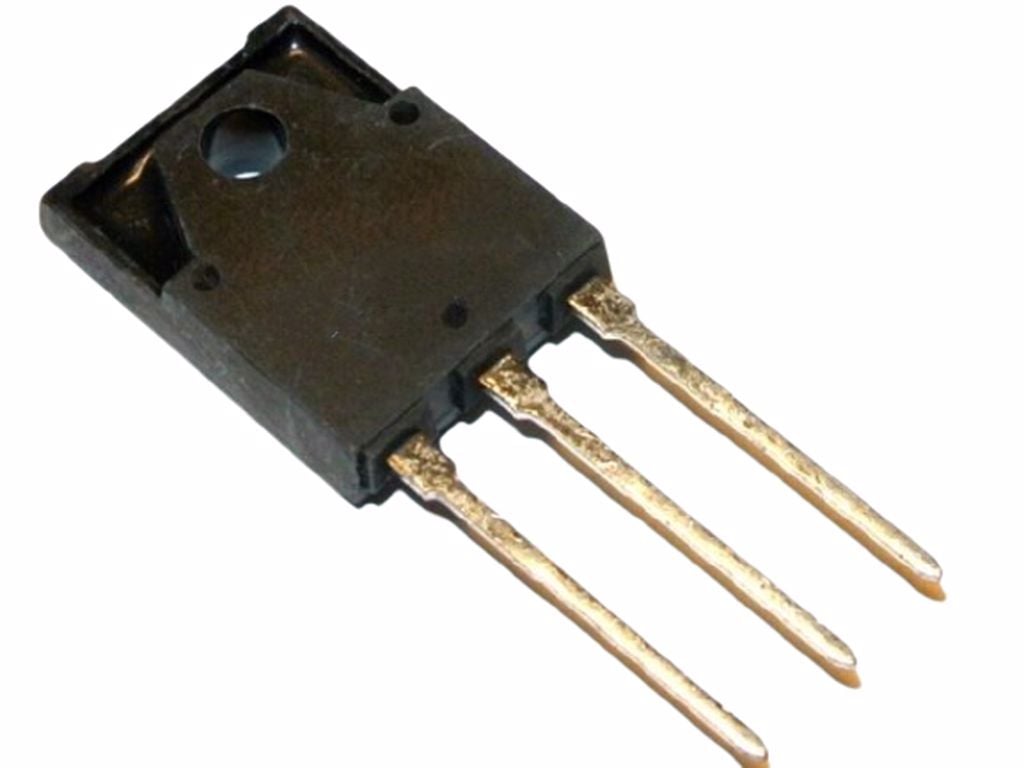

2SK1363 TO-3PF 900V 8A 90W N-CHANNEL MOSFET TRANSISTOR
2SK1363
Type Designator: 2SK1363
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 120 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: SC65
Ürün Bilgisi
2SK1363
Type Designator: 2SK1363
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 120 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: SC65
