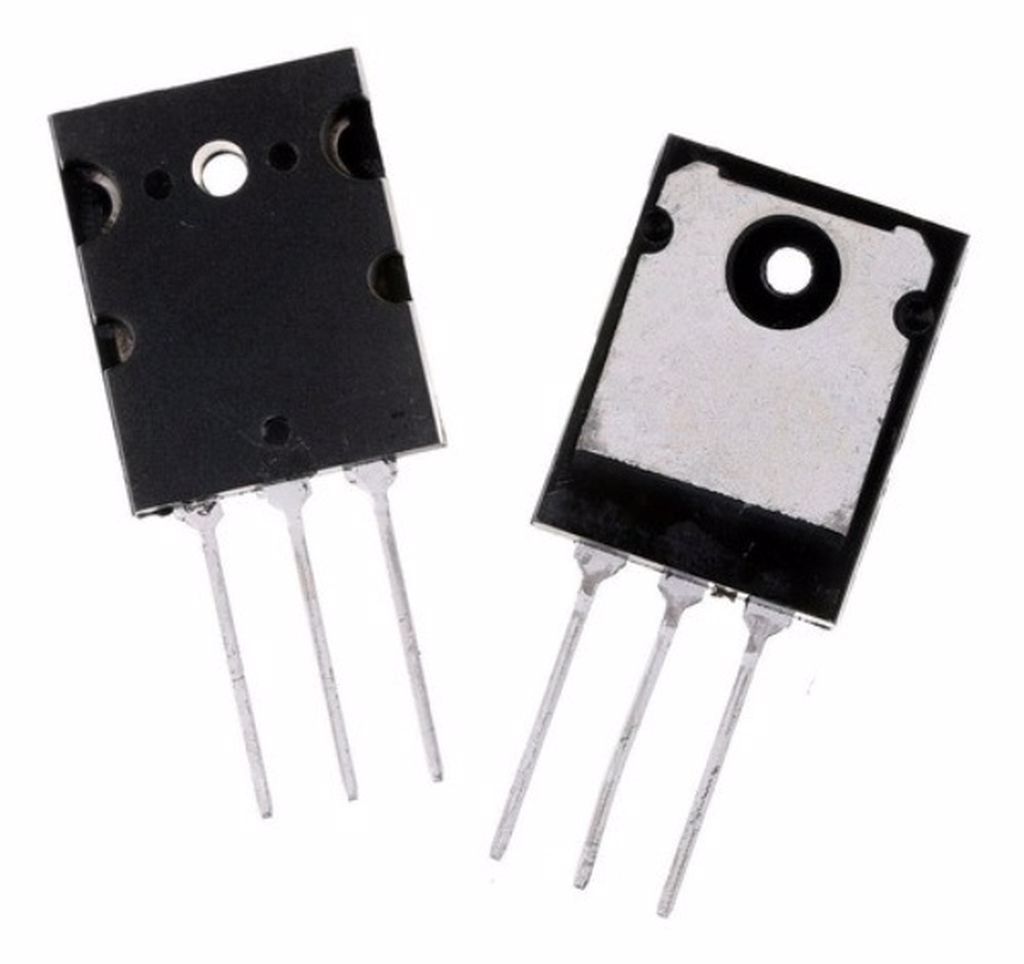

2SK1382 TO-3PL 100V 60A 200W N-CHANNEL MOSFET
2SK1382
Type Designator: 2SK1382
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 200 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 60 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 176 nC
Rise Time (tr): 16 nS
Drain-Source Capacitance (Cd): 2700 pF
Maximum Drain-Source On-State Resistance (Rds): 0.02 Ohm
Package: TO3P
