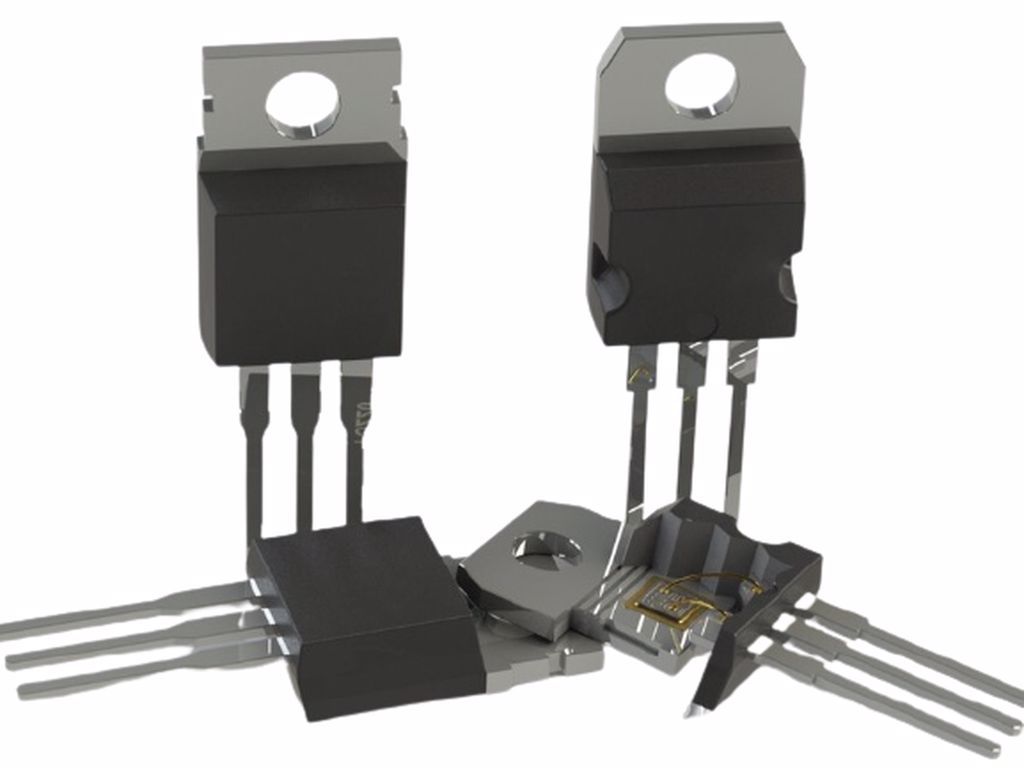

2SK1388 TO-220AB 30V 35A 60W N-CHANNEL MOSFET TRANSISTOR
2SK1388
Type Designator: 2SK1388
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 60 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 35 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 800 pF
Maximum Drain-Source On-State Resistance (Rds): 0.022 Ohm
Package: TO-220AB
Ürün Bilgisi
2SK1388
Type Designator: 2SK1388
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 60 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 35 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 800 pF
Maximum Drain-Source On-State Resistance (Rds): 0.022 Ohm
Package: TO-220AB
