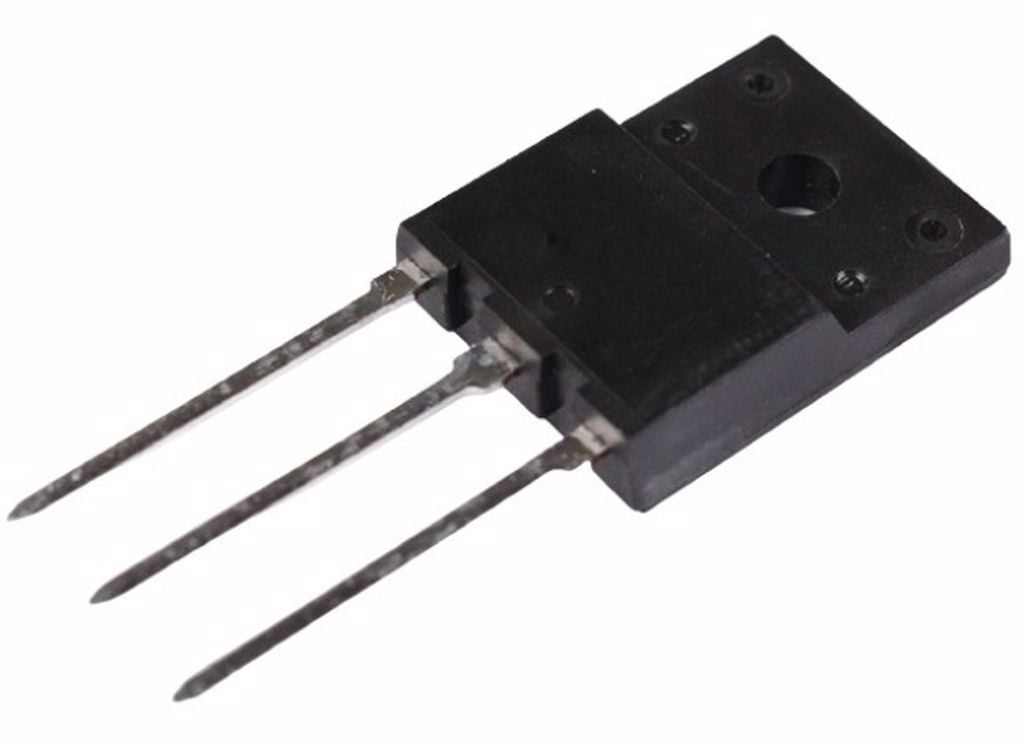

2SK1453 TO-3PML 450V 16A 70W N-CHANNEL MOSFET TRANSISTOR
Kalan Stok : 23
115,11 TL
2SK1453 TO-3PML 450V 16A 70W N-CHANNEL MOSFET TRANSISTOR
2SK1453
Type Designator: 2SK1453
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage |Vds|: 450 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 16 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 440 pF
Maximum Drain-Source On-State Resistance (Rds): 0.3 Ohm
Package: TO3PML
