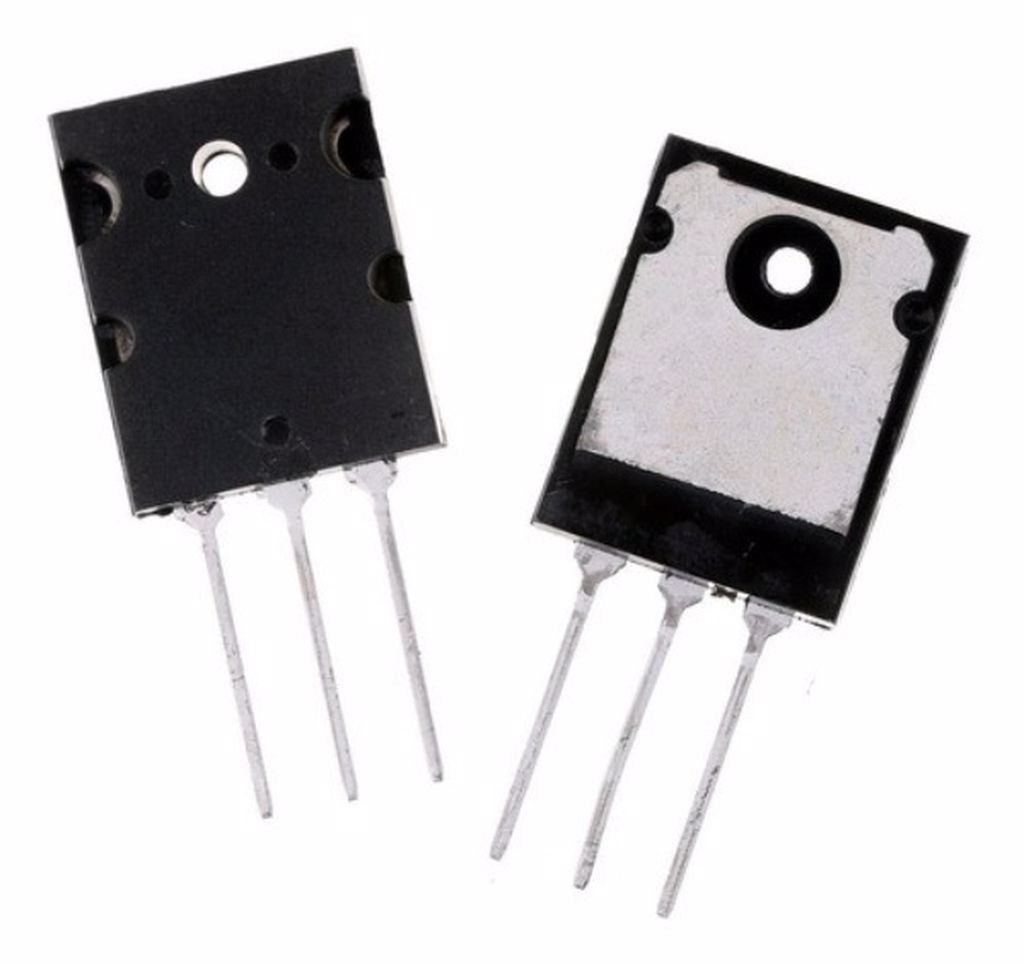

2SK1489 TO-3PL 12A 1000V 200W N-CHANNEL MOSFET TRANSISTOR
2SK1489
Type Designator: 2SK1489
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 200 W
Maximum Drain-Source Voltage |Vds|: 1000 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 110 nC
Rise Time (tr): 100 nS
Drain-Source Capacitance (Cd): 360 pF
Maximum Drain-Source On-State Resistance (Rds): 1 Ohm
Package: TO3P
