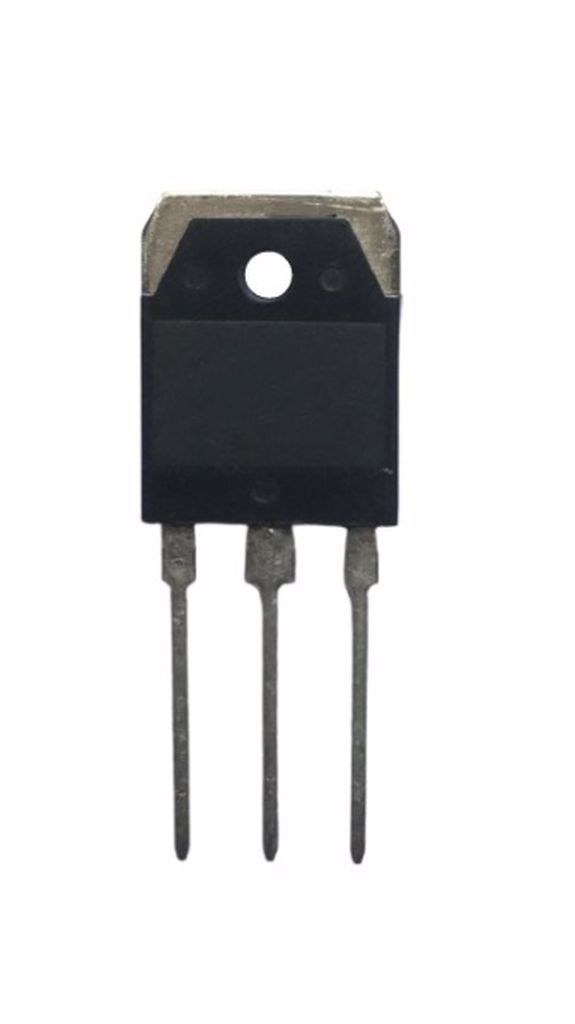

2SK1502 TO-3P 900V 7A 120W N-CHANNEL MOSFET TRANSISTOR
2SK1502
Type Designator: 2SK1502
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 120 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 80 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 225 pF
Maximum Drain-Source On-State Resistance (Rds): 2 Ohm
Package: TO3P
Ürün Bilgisi
2SK1502
Type Designator: 2SK1502
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 120 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 80 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 225 pF
Maximum Drain-Source On-State Resistance (Rds): 2 Ohm
Package: TO3P
