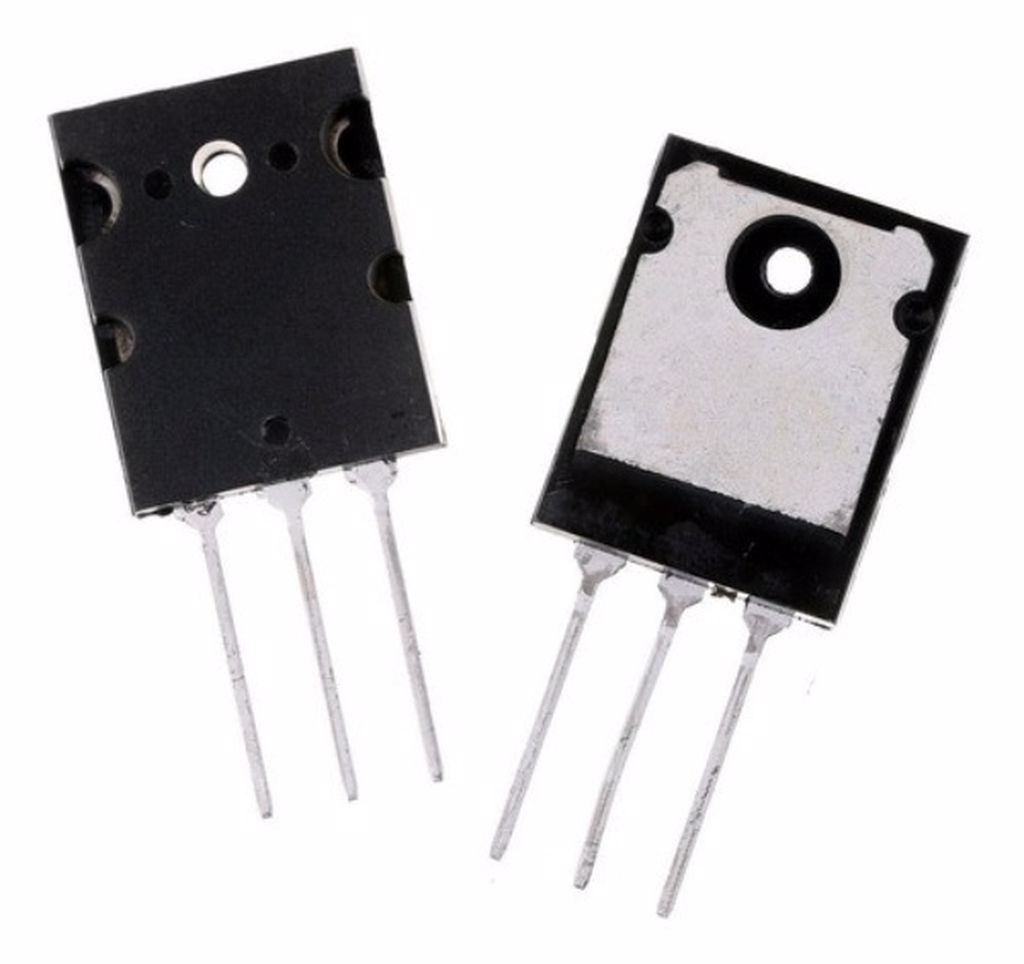

2SK1530 TO-3PL 12A 200V 150W N-CHANNEL MOSFET TRANSISTOR
2SK1530
Type Designator: 2SK1530
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 0.2 Ohm
Package: TO3P
Ürün Bilgisi
2SK1530
Type Designator: 2SK1530
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 0.2 Ohm
Package: TO3P
