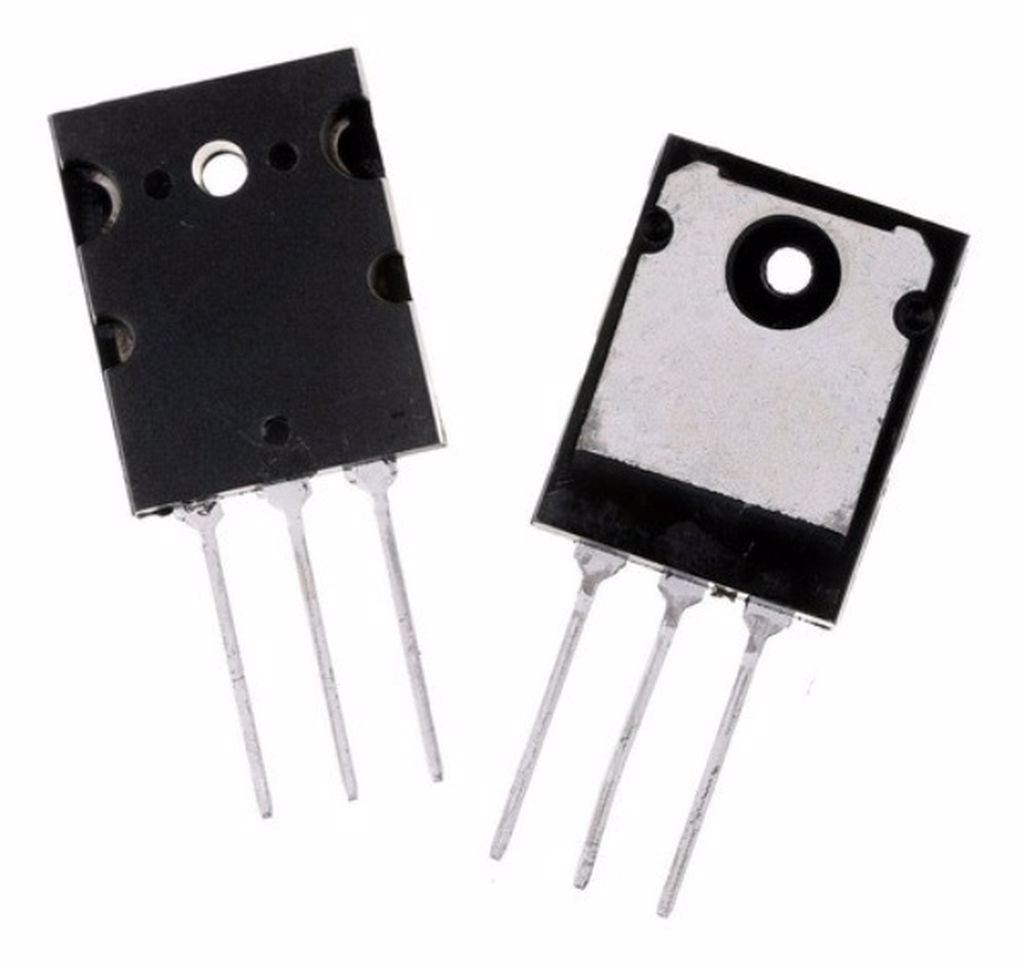

2SK1544 TO-3PL 25A 500V 200W N-CHANNEL MOSFET TRANSISTOR
2SK1544
Type Designator: 2SK1544
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 200 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 25 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 150 nC
Rise Time (tr): 185 nS
Drain-Source Capacitance (Cd): 920 pF
Maximum Drain-Source On-State Resistance (Rds): 0.2 Ohm
Package: TO3P
