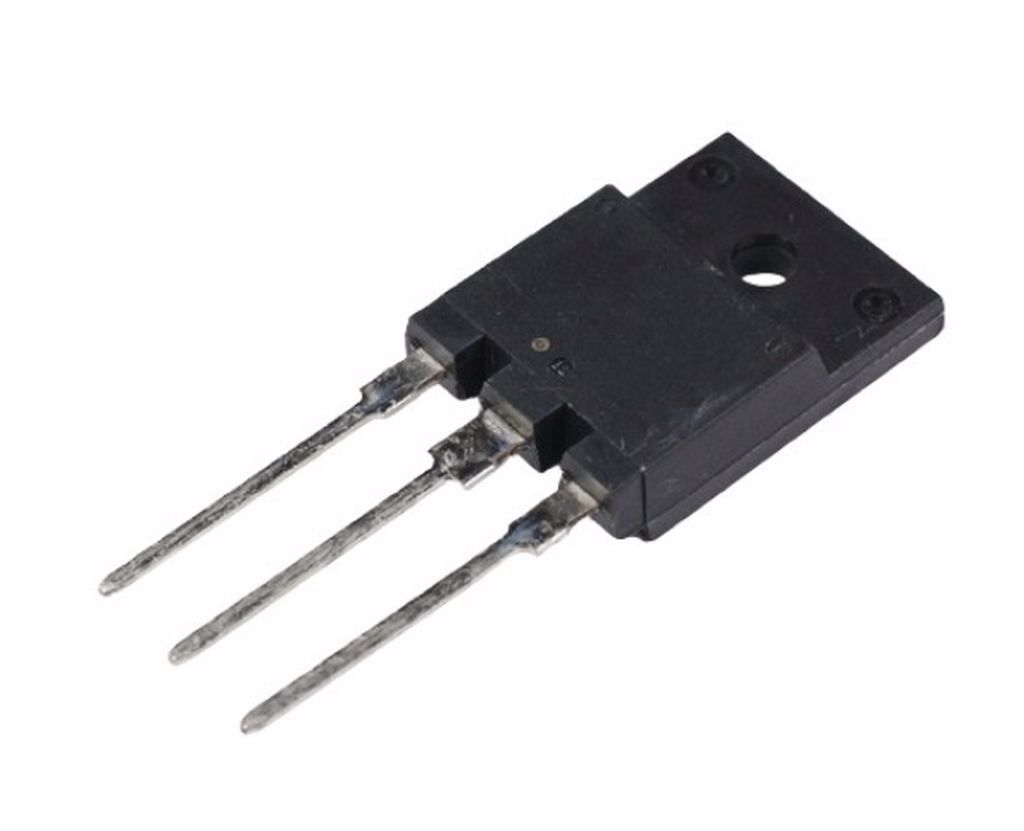

2SK1938 TO-3PML 500V 18A 80W N-CHANNEL MOSFET
2SK1938
Type Designator: 2SK1938
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 340 pF
Maximum Drain-Source On-State Resistance (Rds): 0.35 Ohm
Package: TO-3PML
Ürün Bilgisi
2SK1938
Type Designator: 2SK1938
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 80 nS
Drain-Source Capacitance (Cd): 340 pF
Maximum Drain-Source On-State Resistance (Rds): 0.35 Ohm
Package: TO-3PML
