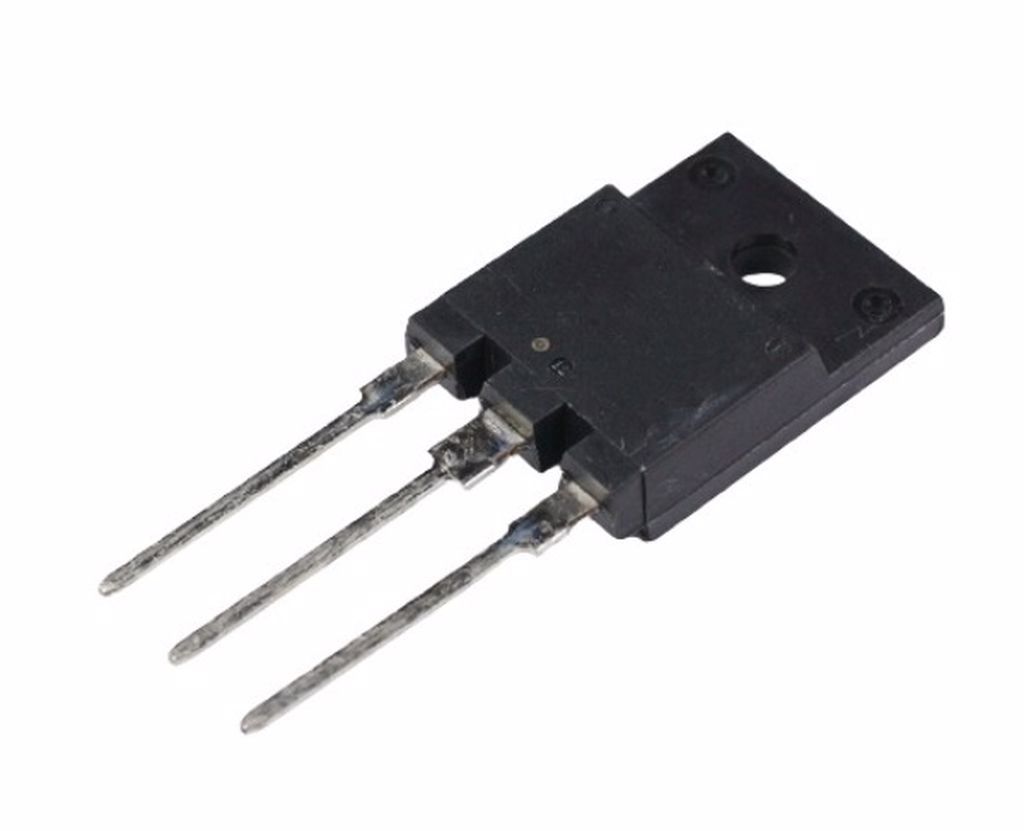

2SK1941 TO-3PML 600V 16A 100W N-CHANNEL MOSFET TRANSISTOR
2SK1941
Type Designator: 2SK1941
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 16 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 70 nS
Drain-Source Capacitance (Cd): 310 pF
Maximum Drain-Source On-State Resistance (Rds): 0.55 Ohm
Package: TO-3PML
