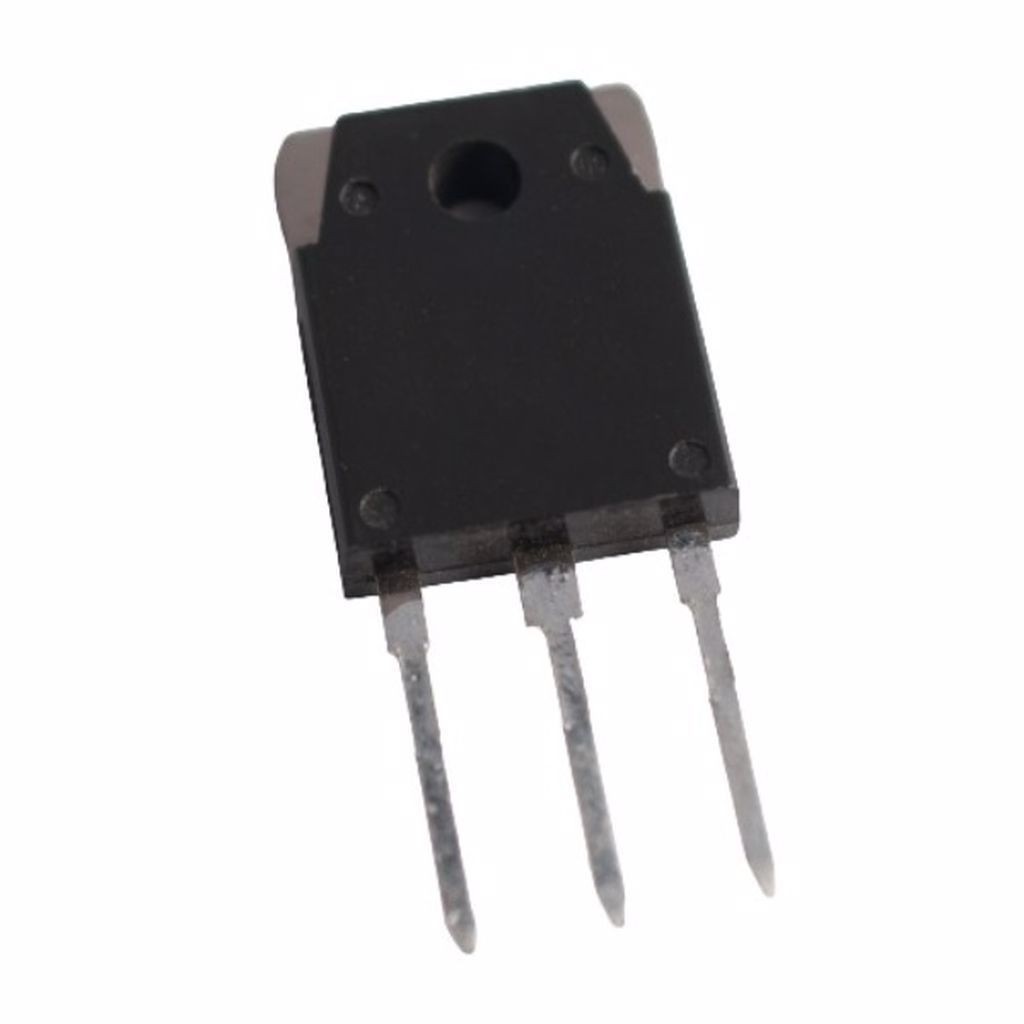

2SK1942 TO-3PN 900V 3A 80W N-CHANNEL MOSFET TRANSISTOR
2SK1942
Type Designator: 2SK1942
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 80 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO-3PN
Ürün Bilgisi
2SK1942
Type Designator: 2SK1942
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 80 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO-3PN
