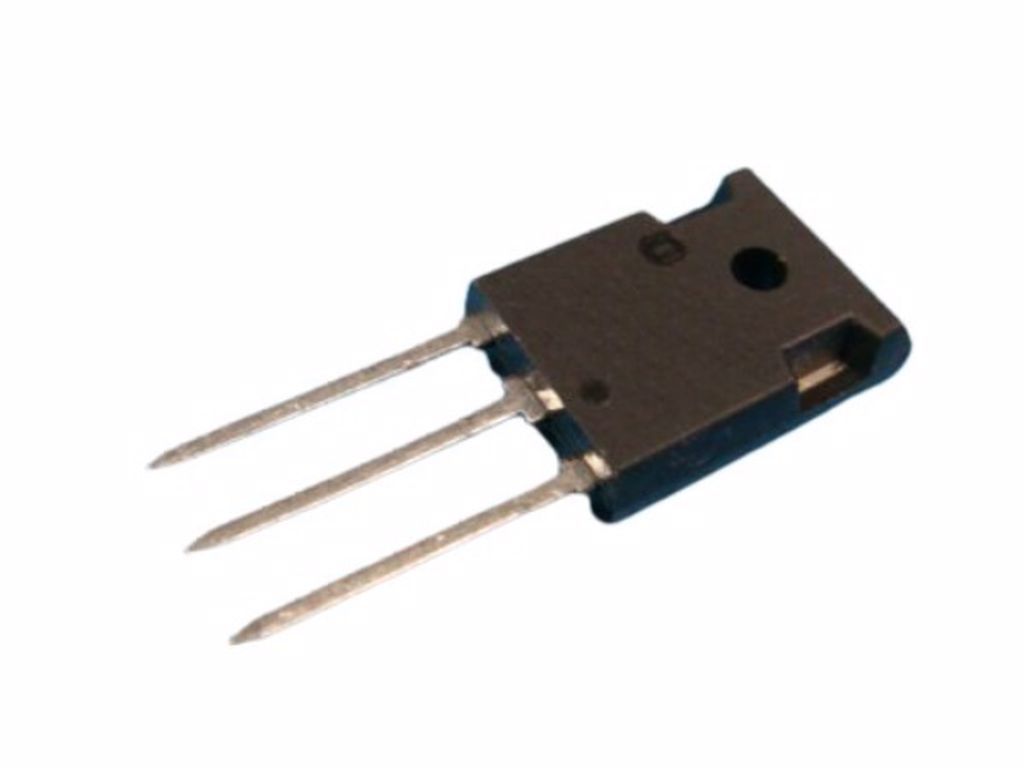

2SK2061 TO-247 600V 16A 150W N-CHANNEL MOSFET TRANSISTOR
2SK2061
Type Designator: 2SK2061
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 16 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 575 pF
Maximum Drain-Source On-State Resistance (Rds): 0.45 Ohm
Package: SC65
Ürün Bilgisi
2SK2061
Type Designator: 2SK2061
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 16 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 575 pF
Maximum Drain-Source On-State Resistance (Rds): 0.45 Ohm
Package: SC65
