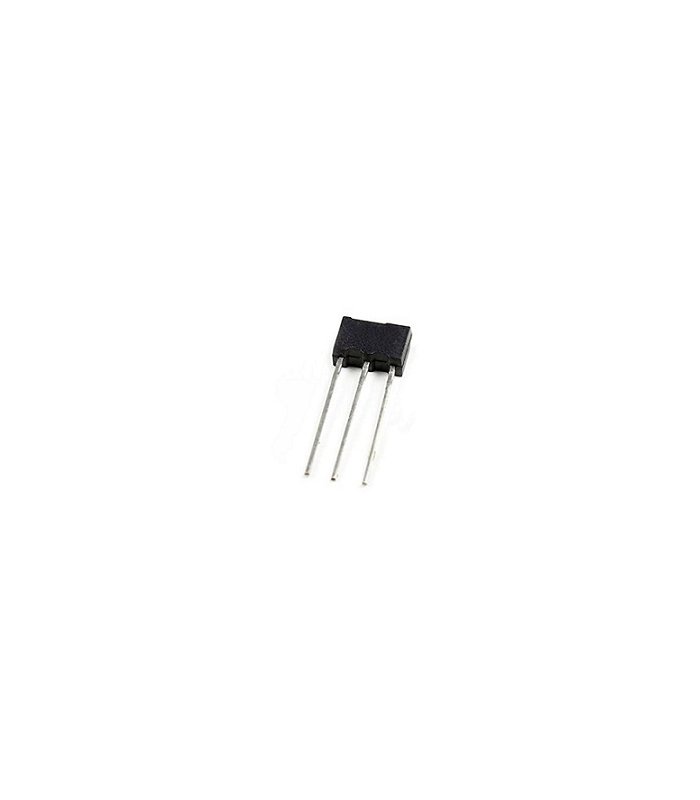

2SK2200 SIL-3 100V 3A 1.3W N-CHANNEL MOSFET TRANSISTOR
2SK2200
Type Designator: 2SK2200
Marking Code: K2200
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 13.5 nC
Rise Time (tr): 20 nS
Drain-Source Capacitance (Cd): 105 pF
Maximum Drain-Source On-State Resistance (Rds): 0.35 Ohm
Package: TPS
Ürün Bilgisi
2SK2200
Type Designator: 2SK2200
Marking Code: K2200
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.3 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 13.5 nC
Rise Time (tr): 20 nS
Drain-Source Capacitance (Cd): 105 pF
Maximum Drain-Source On-State Resistance (Rds): 0.35 Ohm
Package: TPS
