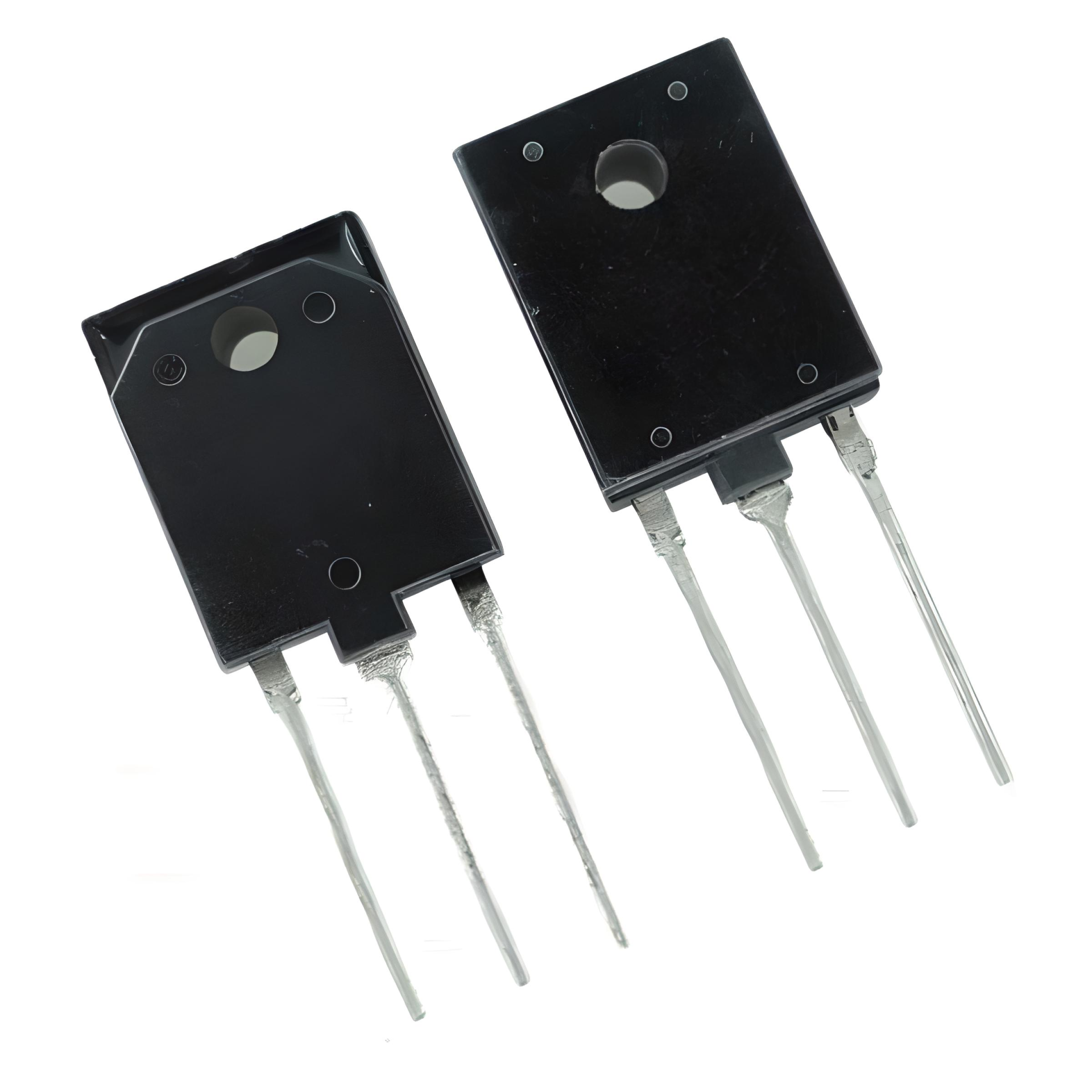

2SK2225-E TO-3PFM 1500V 2A 50W 12Ω N-CHANNEL MOSFET
2SK2225
Type Designator: 2SK2225
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 50 W
Maximum Drain-Source Voltage |Vds|: 1500 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Minimum Gate-to-Source Cutoff Voltage |Vgs(off)|: 2 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 125 pF
Maximum Drain-Source On-State Resistance (Rds): 12 Ohm
Package: TO3PFM
Ürün Bilgisi
2SK2225
Type Designator: 2SK2225
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 50 W
Maximum Drain-Source Voltage |Vds|: 1500 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Minimum Gate-to-Source Cutoff Voltage |Vgs(off)|: 2 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 125 pF
Maximum Drain-Source On-State Resistance (Rds): 12 Ohm
Package: TO3PFM
