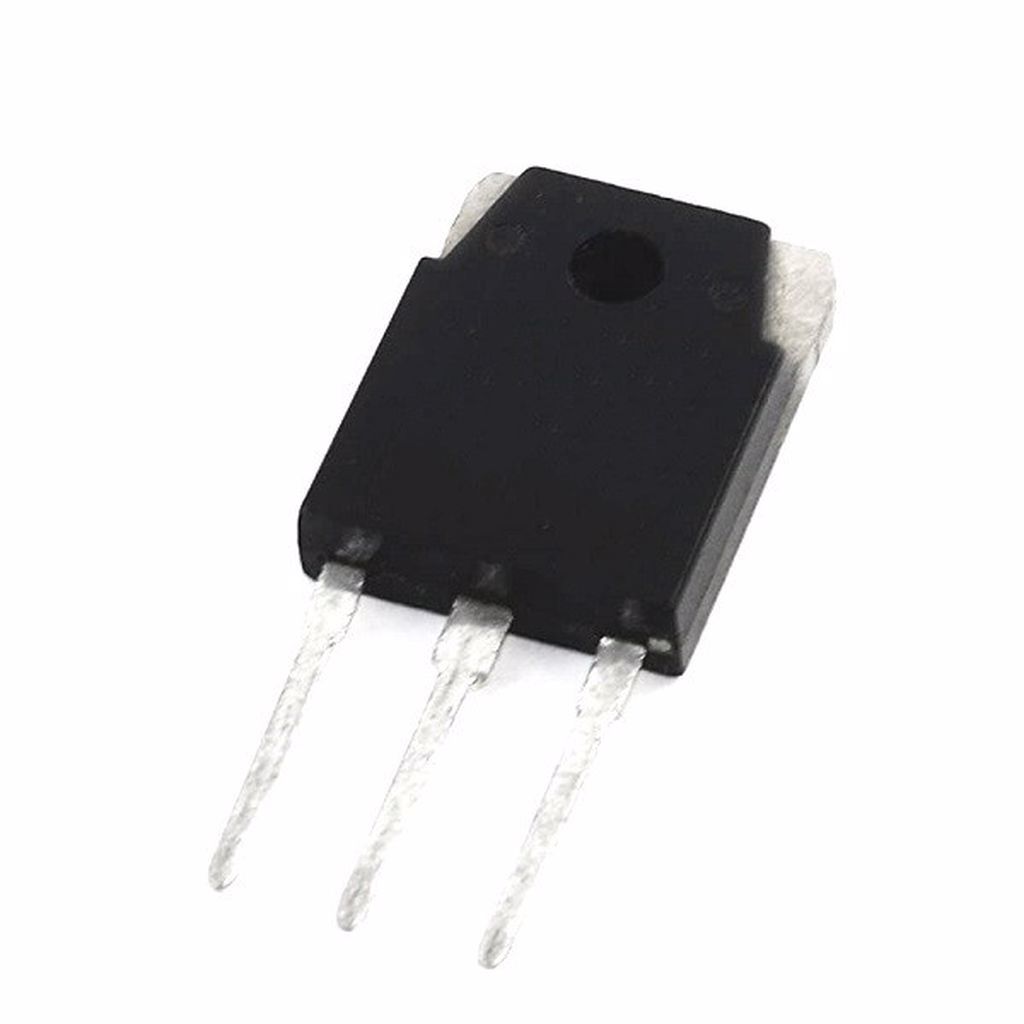

2SK2257 TO-3P 17A 500V 150W N-CHANNEL MOSFET TRANSISTOR
2SK2257
Type Designator: 2SK2257
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 70 nS
Drain-Source Capacitance (Cd): 300 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO-3PN
Ürün Bilgisi
2SK2257
Type Designator: 2SK2257
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 70 nS
Drain-Source Capacitance (Cd): 300 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO-3PN
