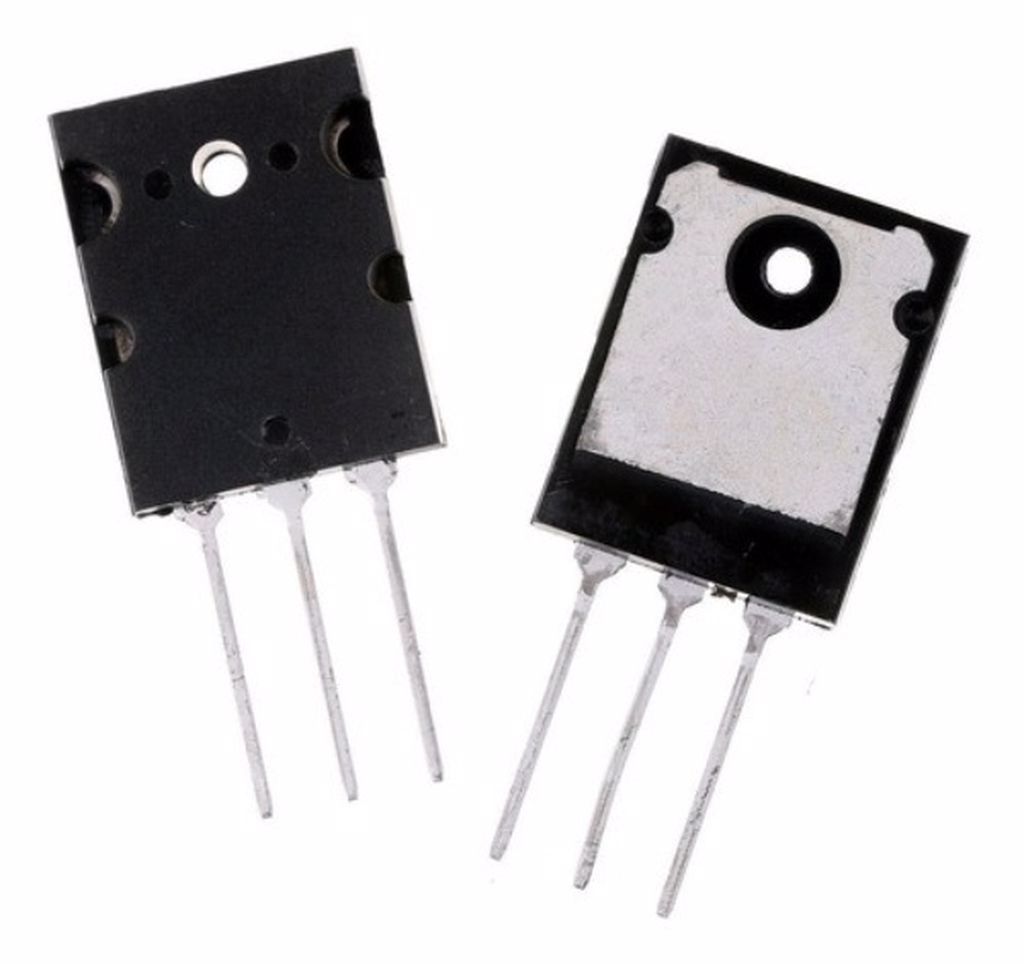

2SK2347 TO-3JML 1000V 20A 160W N-CHANNEL MOSFET TRANSISTOR
2SK2347
Type Designator: 2SK2347
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 160 W
Maximum Drain-Source Voltage |Vds|: 1000 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 200 nS
Drain-Source Capacitance (Cd): 750 pF
Maximum Drain-Source On-State Resistance (Rds): 0.8 Ohm
Package: TO3JML
Ürün Bilgisi
2SK2347
Type Designator: 2SK2347
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 160 W
Maximum Drain-Source Voltage |Vds|: 1000 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 200 nS
Drain-Source Capacitance (Cd): 750 pF
Maximum Drain-Source On-State Resistance (Rds): 0.8 Ohm
Package: TO3JML
