2SK2504 TO-252 5A 100V 20W N-CHANNEL MOSFET TRANSISTOR
2SK2504
Type Designator: 2SK2504TL
Marking Code: K2504
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 20 nS
Drain-Source Capacitance (Cd): 175 pF
Maximum Drain-Source On-State Resistance (Rds): 0.22 Ohm

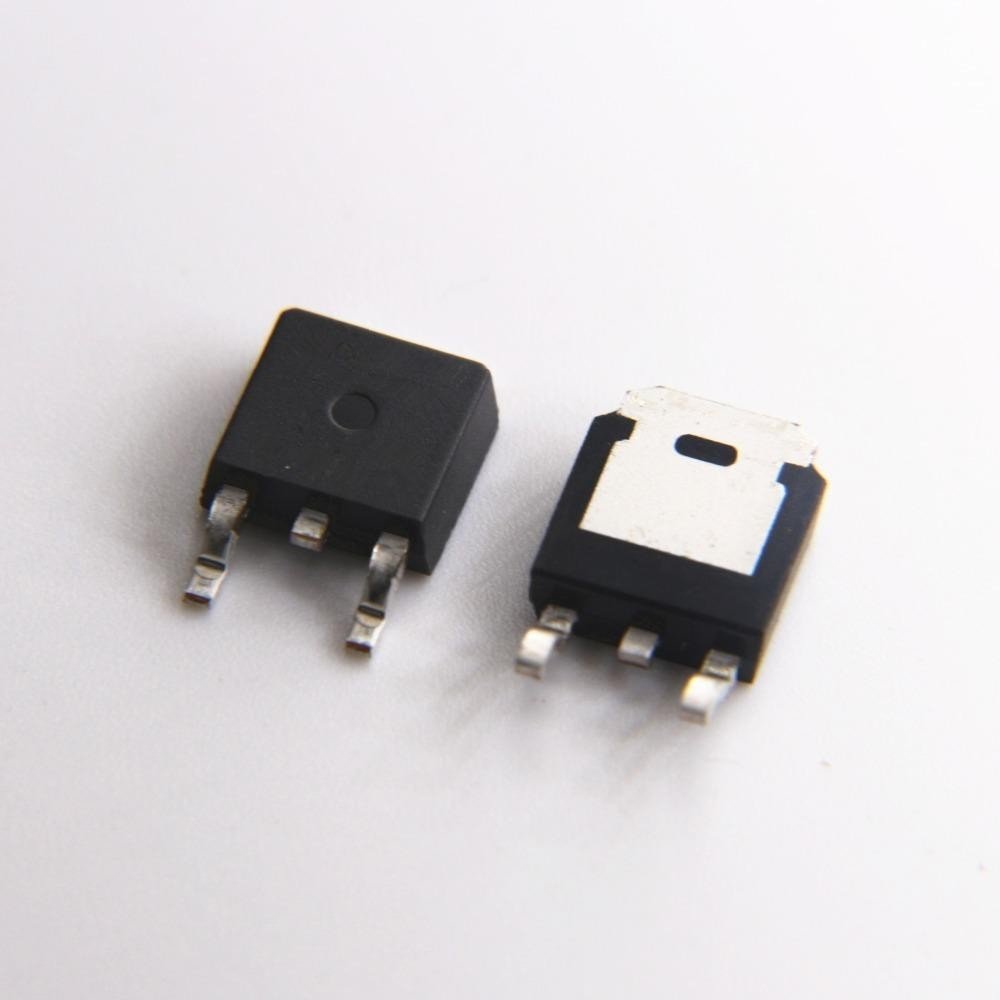

Package: TO252
Ürün Bilgisi
2SK2504
Type Designator: 2SK2504TL
Marking Code: K2504
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 20 nS
Drain-Source Capacitance (Cd): 175 pF
Maximum Drain-Source On-State Resistance (Rds): 0.22 Ohm
Package: TO252
