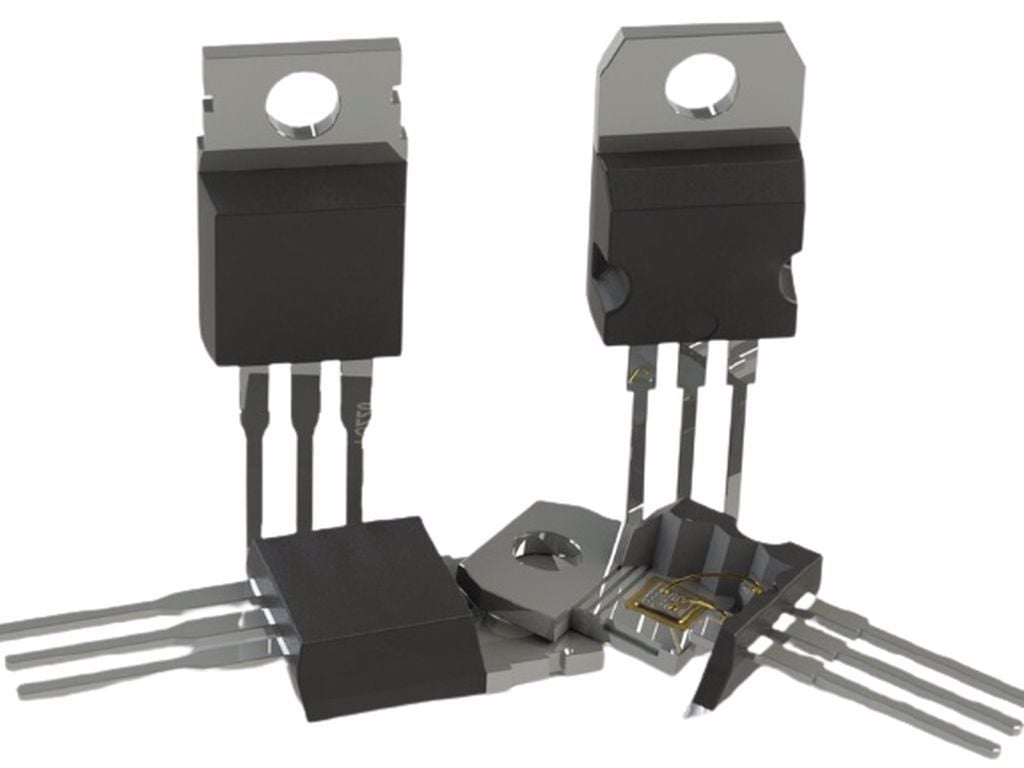

2SK2608 TO-220 3A 900V 100W 4.3OHM N-CHANNEL MOSFET
2SK2608
Type Designator: 2SK2608
Marking Code: K2608
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 25 nC
Rise Time (tr): 15 nS
Drain-Source Capacitance (Cd): 70 pF
Maximum Drain-Source On-State Resistance (Rds): 4.3 Ohm
Package: TO220AB
Ürün Bilgisi
2SK2608
Type Designator: 2SK2608
Marking Code: K2608
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 3 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 25 nC
Rise Time (tr): 15 nS
Drain-Source Capacitance (Cd): 70 pF
Maximum Drain-Source On-State Resistance (Rds): 4.3 Ohm
Package: TO220AB
