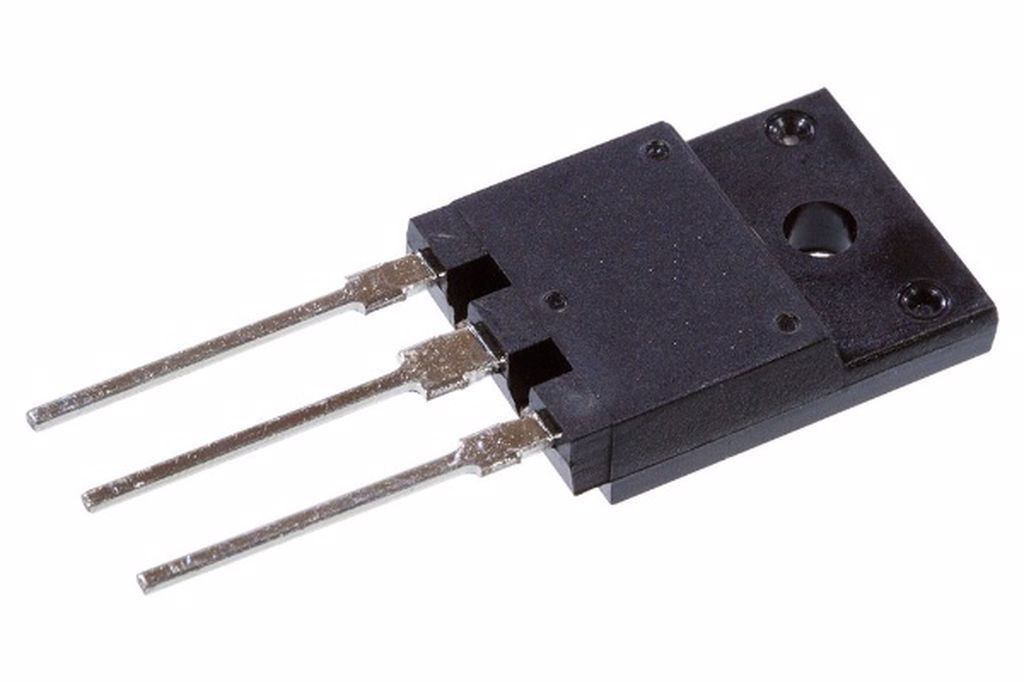

2SK2675 TO-3PF 900V 7A 55W N-CHANNEL MOSFET TRANSISTOR
2SK2675
Type Designator: 2SK2675
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 55 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 63 nC
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 1.5 Ohm
Package: ITO3P
Ürün Bilgisi
2SK2675
Type Designator: 2SK2675
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 55 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 7 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 63 nC
Drain-Source Capacitance (Cd): 150 pF
Maximum Drain-Source On-State Resistance (Rds): 1.5 Ohm
Package: ITO3P
