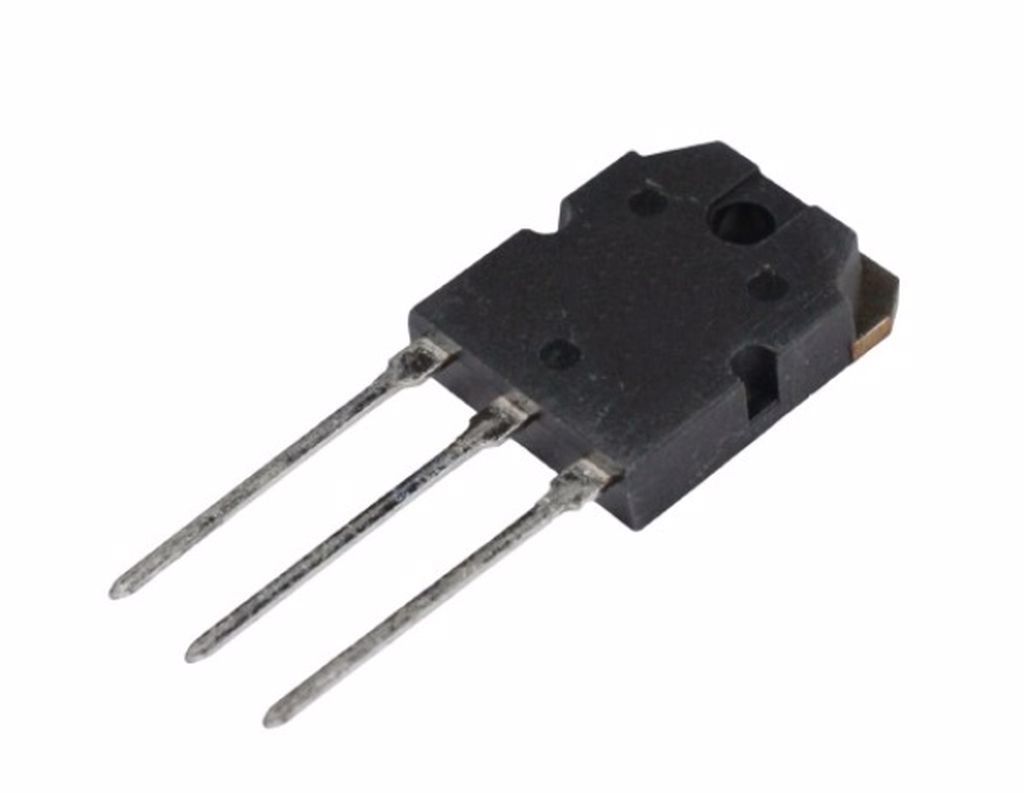

2SK2698 TO-3P 500V 15A 150W N-CHANNEL MOSFET TRANSISTOR
2SK2698
Type Designator: 2SK2698
Marking Code: K2698
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 58 nC
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 880 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO3P
Ürün Bilgisi
2SK2698
Type Designator: 2SK2698
Marking Code: K2698
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 15 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 58 nC
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 880 pF
Maximum Drain-Source On-State Resistance (Rds): 0.4 Ohm
Package: TO3P
